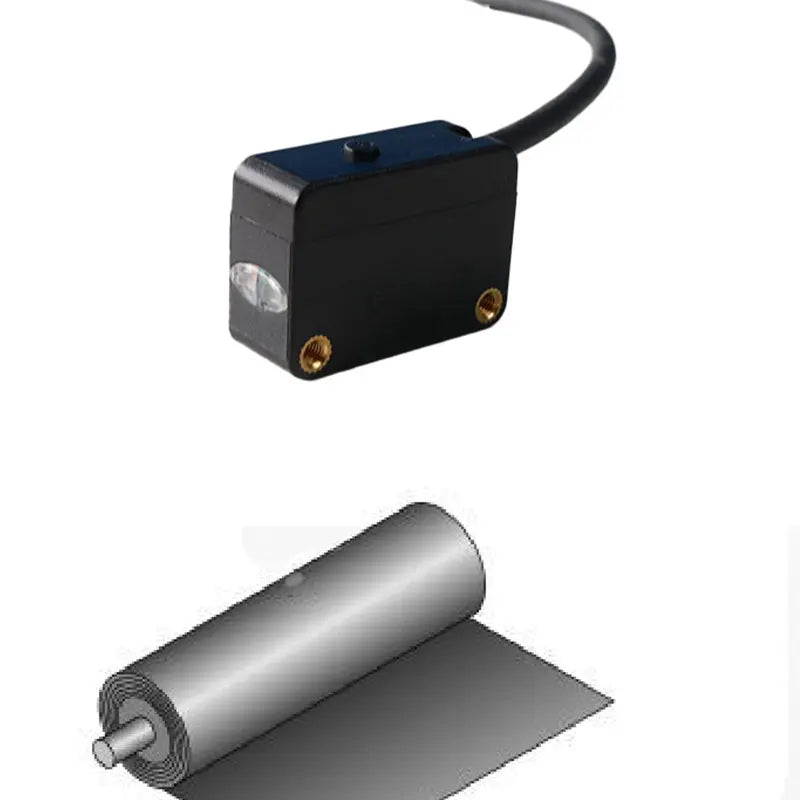

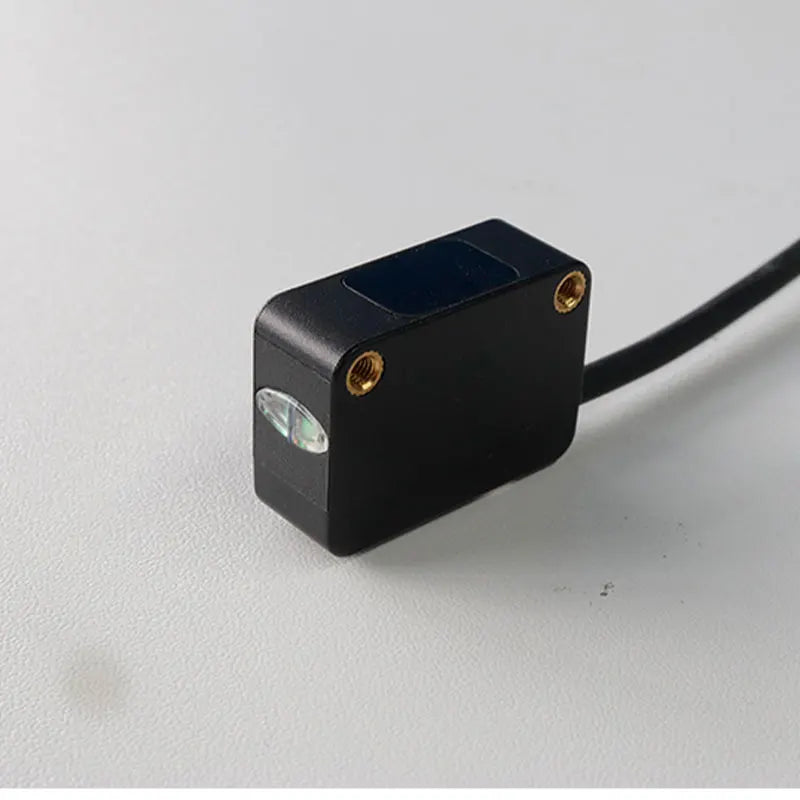

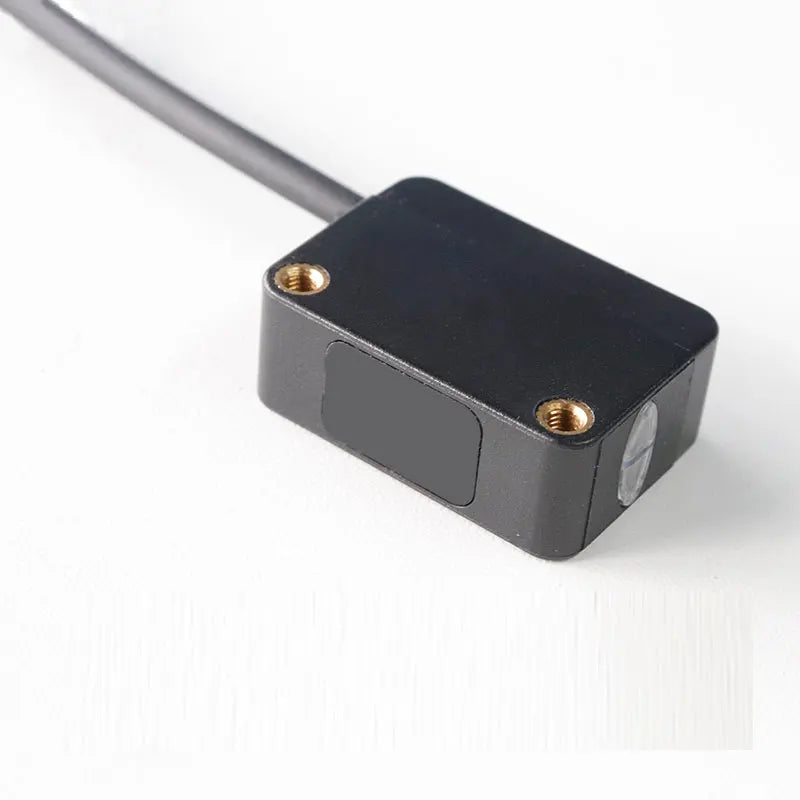

TOF square photoelectric sensor, photoelectric switch, distance sensor, RS485 communication, 0.5-4 000 mm

$27.92

$27.92 $27.92

Product Description

Category	Specification
Detection Method	Reflective Type
Model Numbers	NPN Output: EZ-TOF2N, EZ-TOF4N PNP Output: EZ-TOF2P, EZ-TOF4P RS485 Communication: EZ-TOF2RS
Standard Target	100×100mm white paper

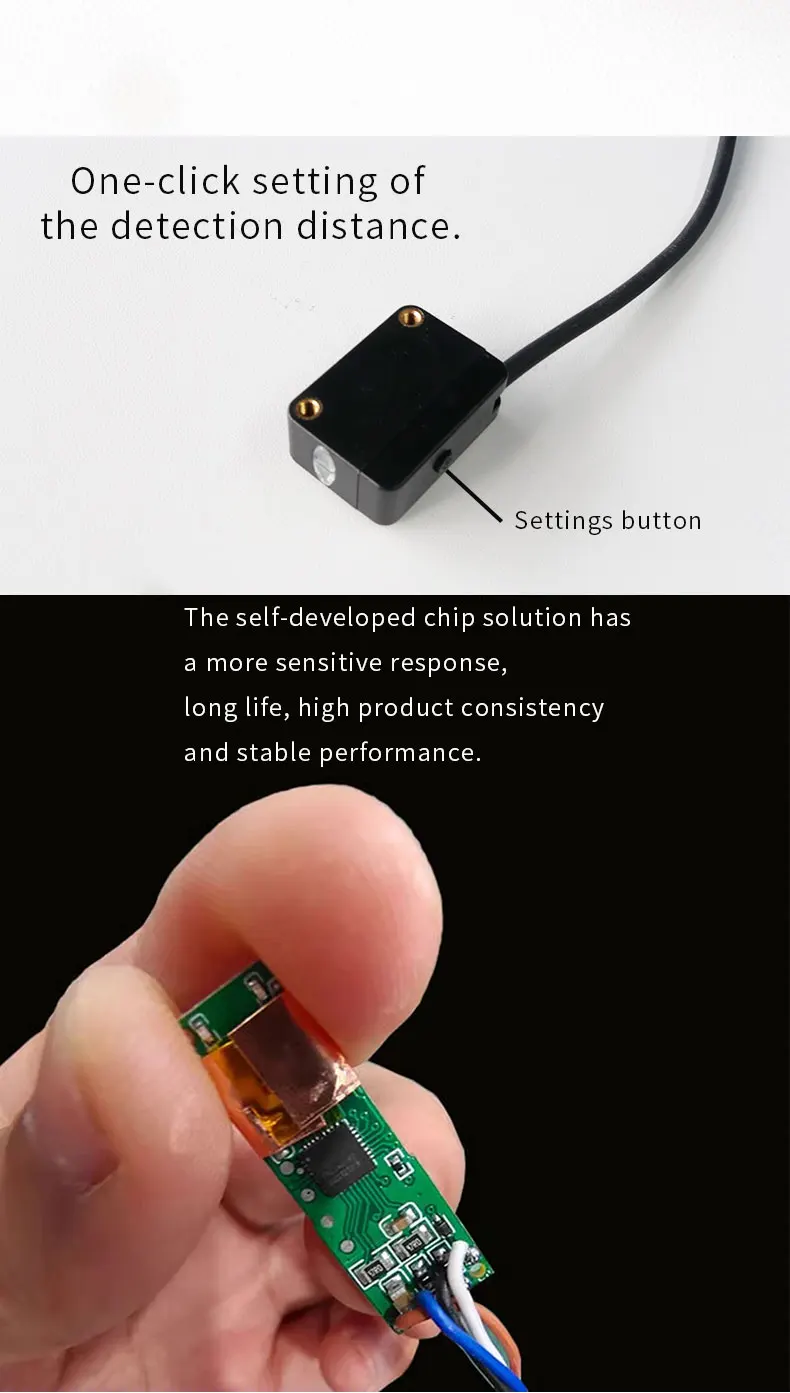

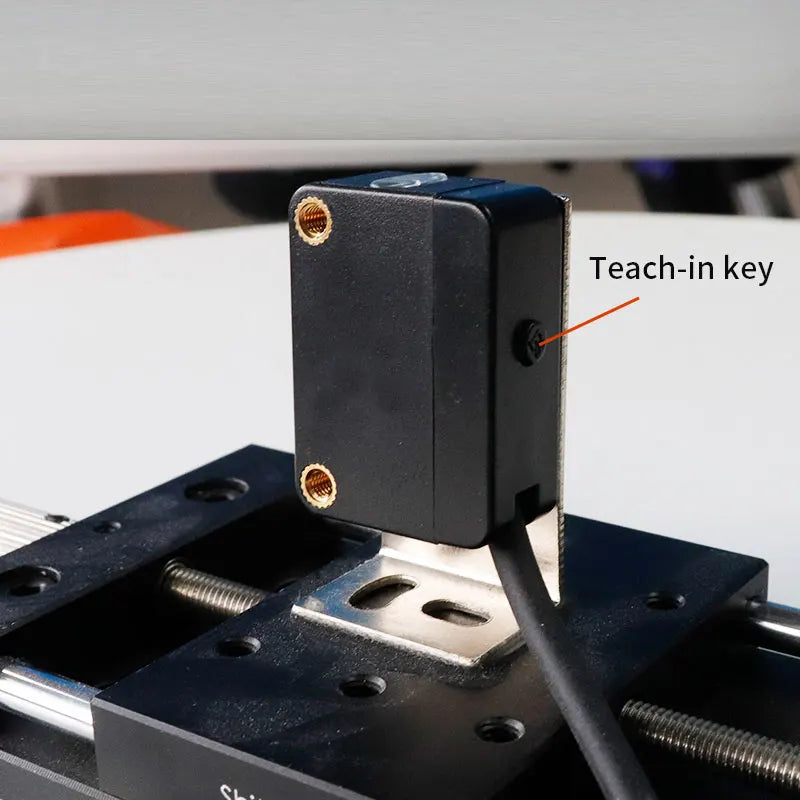

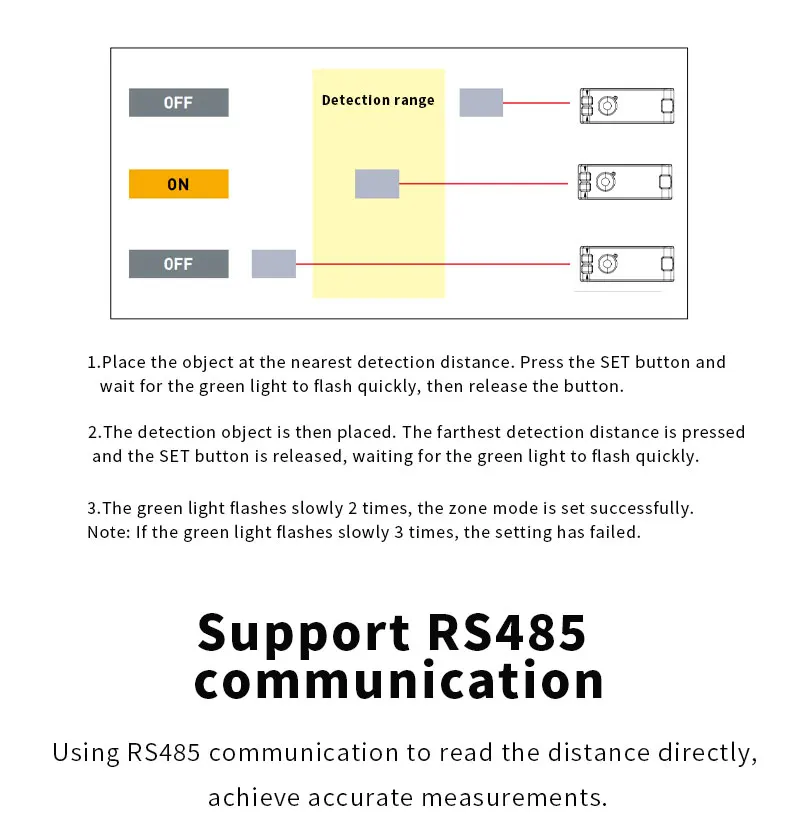

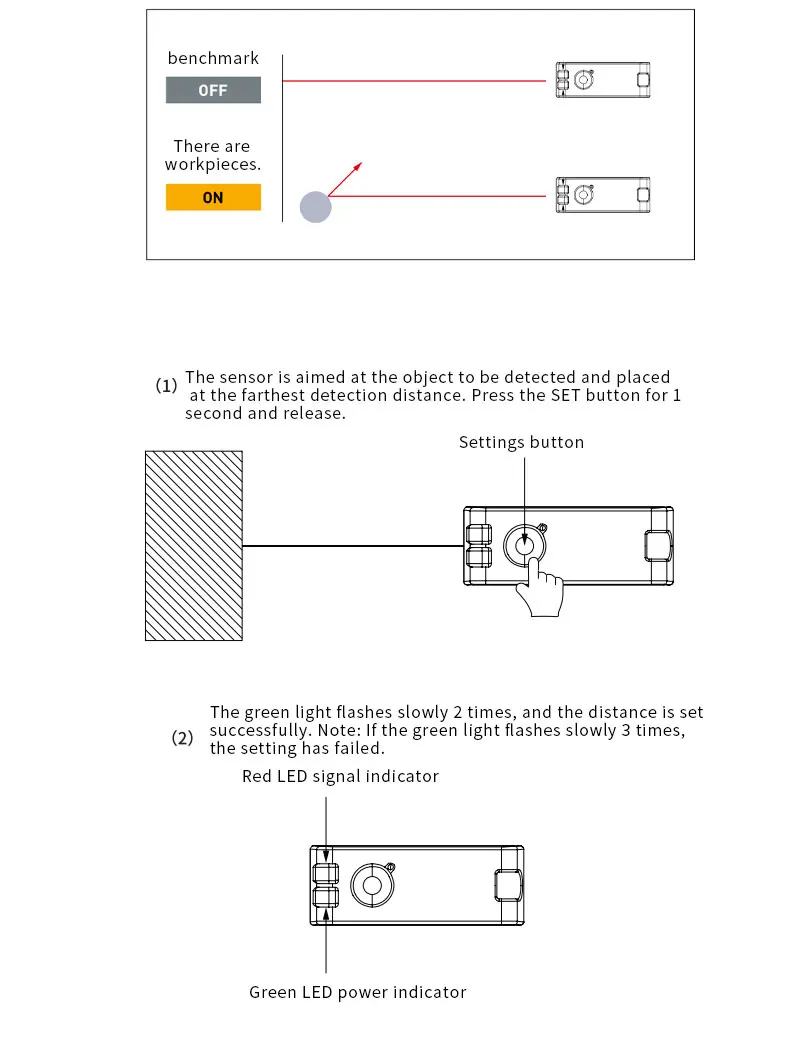

Operation Mode	One-touch TOF calibration
Detection Range	50–1500mm (EZ-TOF2 series) 50–4000mm (EZ-TOF4 series)
Light Source	Infrared LED (940nm), IEC Class 1
Power Supply	DC 12–24V ±10% (including ripple, P-P ≤10%)
Power Consumption	≤480mW (at DC24V, ≤20mA current)
Output	Max. load: DC26.4V/80mA (Open-collector, NPN/PNP varies by model)
Residual Voltage	≤1V (load current <10mA) ≤2V (load current 10–80mA)
Protection	Reverse polarity (power/output), short-circuit protection
Response Time	ON/OFF: ≤100ms each
Temperature	Operating: -20 to +50°C Storage: -40 to +70°C (no icing/condensation)
Humidity	Operating: 35–85%RH Storage: 35–95%RH (no icing/condensation)
Ambient Light	Sunlight: ≤10,000 lux
Protection Rating	IP65 (IEC60529)
