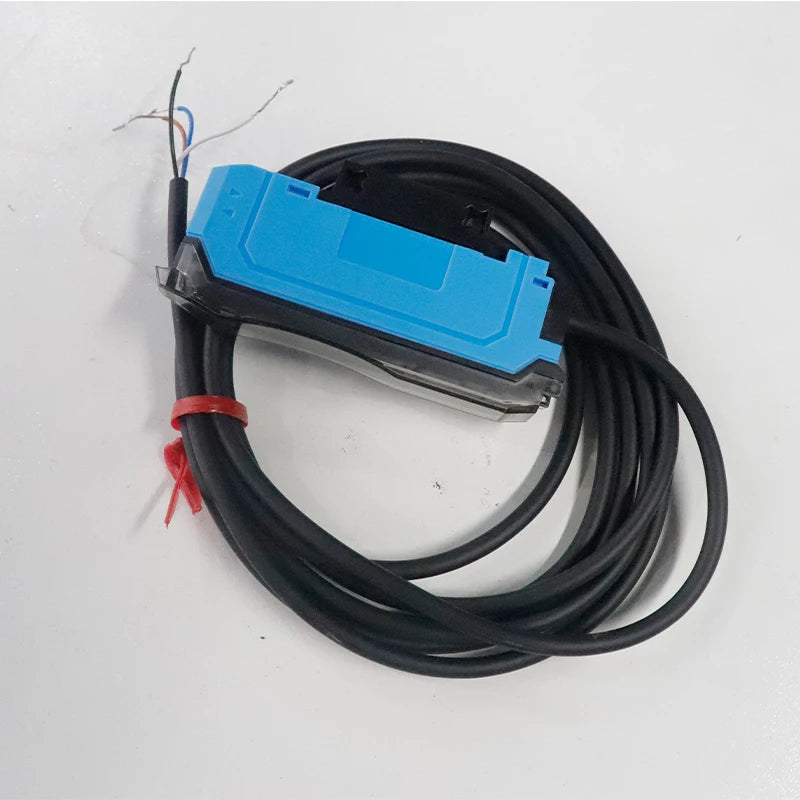

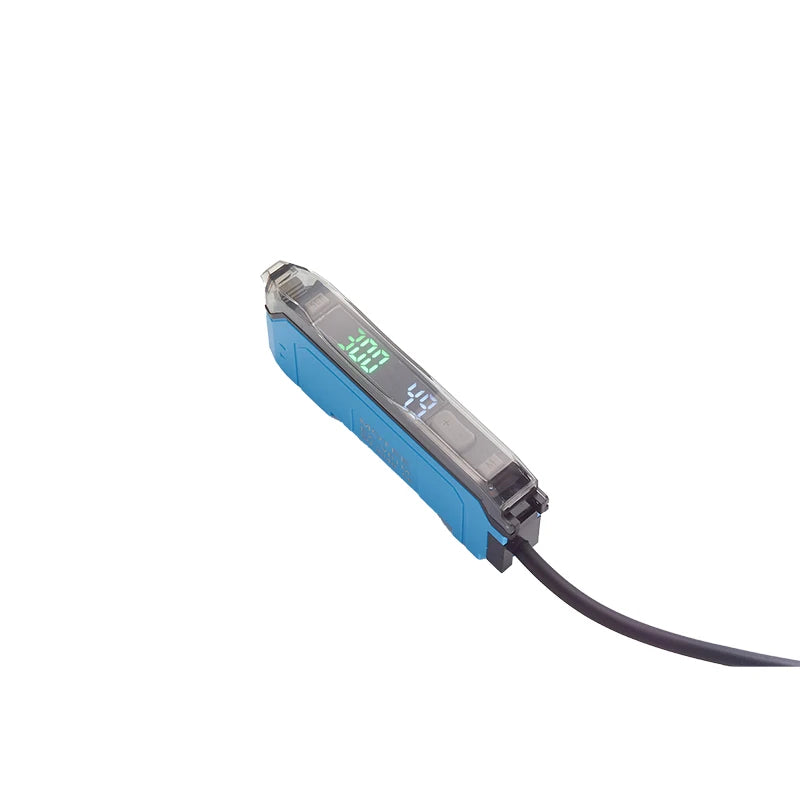

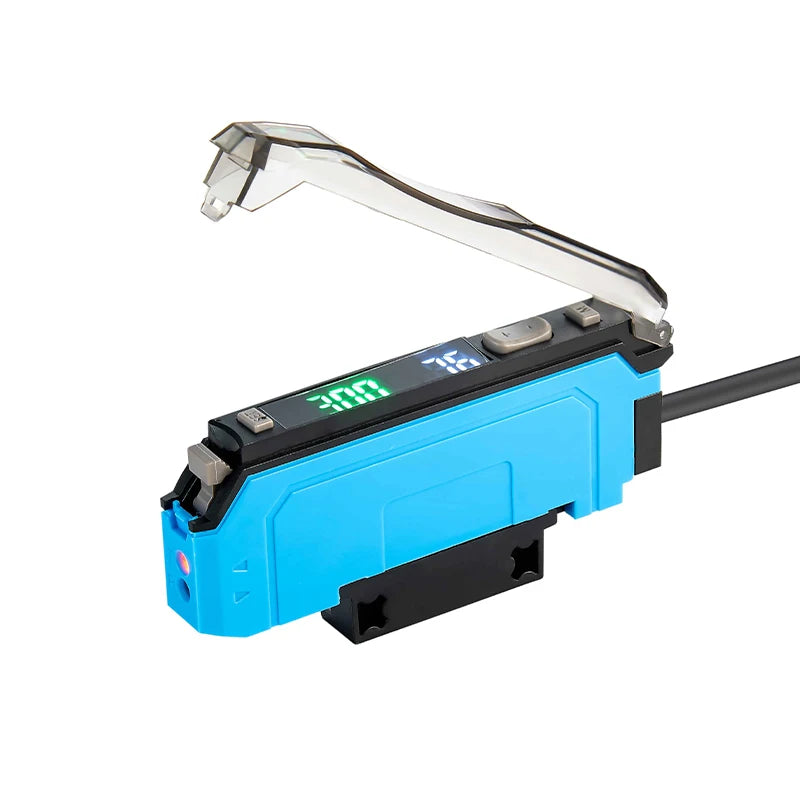

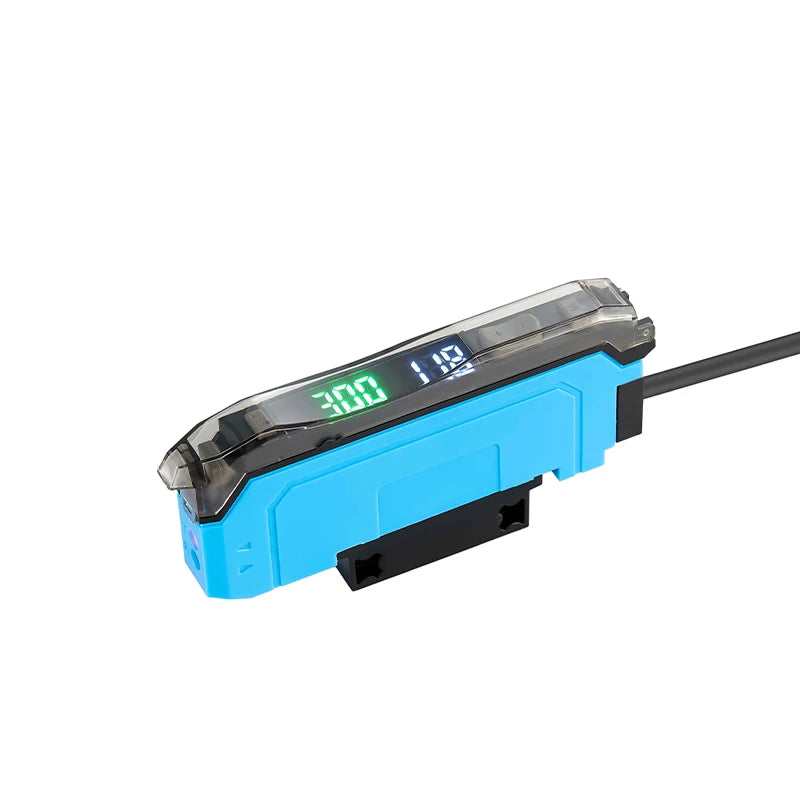

E-MOTEE analog fiber amplifier deviation correction sensor, beam of light reflection photoelectric switch

$44.88

$44.88 $44.88

Specifications EX-V61NM NPN analog 4-20mA EX-V61PM PNP analog 4-20mA EX-V61NM NPN analog 0-5v EX-V61PM PNP analog 0-5v EX-LTA11 matrix fiber head

Product Description

Specification

Here's the professional English translation of the product specifications table:

Model	EX-V61M	EX-V61MV
Type	NPN Output + Analog Current	NPN Output + Analog Voltage
Configuration	1 output port, cable-lead type
Control Output	1 output port (with analog output)
Light Source	Red, 4-element LED array
Response Time	P-0: 0.25µs, P-1: 100µs, P-2: 400µs, P-3: 800µs, P-4: 3.2ms
Output Selection	LIGHT-ON/DARK-ON (switch selectable)

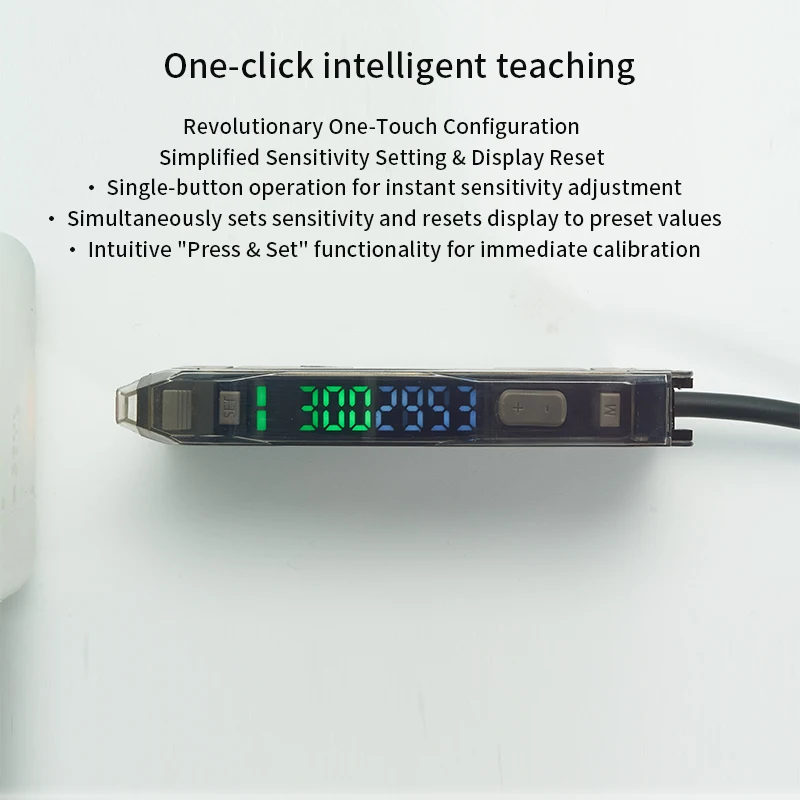

Display Indicators	Operation indicator: White LED Dual digital monitor: Dual 7-segment display Threshold (4-digit green LED display) and current value (4-digit white LED display) illuminate simultaneously Current value range: 0-9999
Detection Method	Light intensity (capable of area detection with auto sensitivity tracking)
Delay Function	Off-delay timer/On-delay timer/One-shot timer/On-delay one-shot timer (selectable)
Control Output	NPN/PNP open collector 24V, max 100mA (main unit only) Max 20mA (with extension unit, residual voltage: 1V) Models with "M" suffix feature analog output: 0-5V with 0.1% accuracy
Power Supply	12-24VDC ±10%, ripple (P-P) max 10%, Class 2
Ambient Light	Incandescent: max 20,000 lux Sunlight: max 30,000 lux
Power Consumption	Standard mode: max 300mW	Standard mode: max 300mW
Voltage Consumption	Max 24V	Max 24V
Vibration Resistance	10-55Hz, double amplitude: 1.5mm, 2 hours each for X,Y,Z axes
Operating Temperature	-10 to +55°C (non-freezing)
