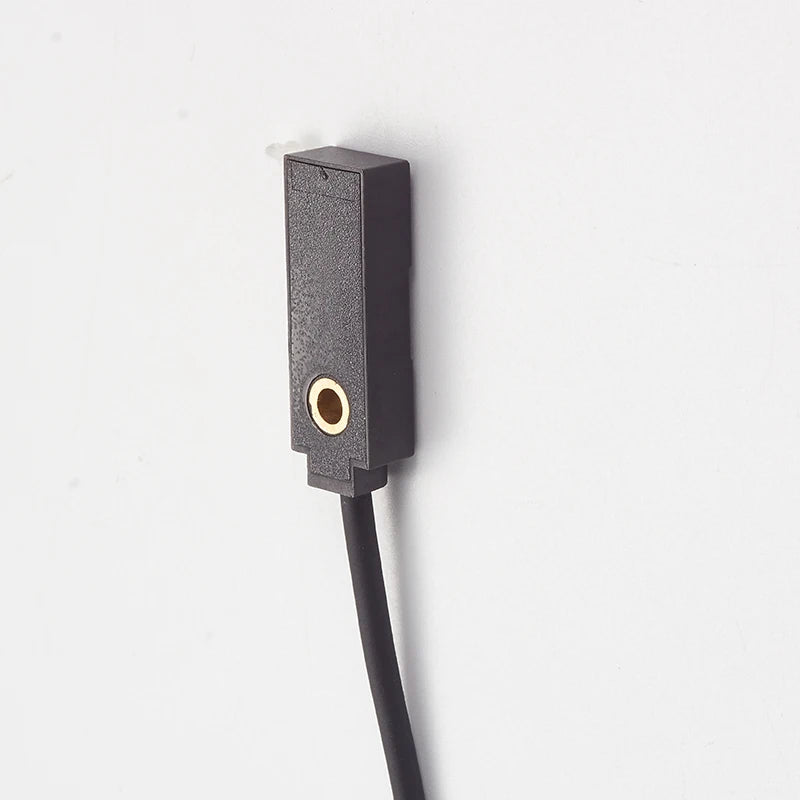

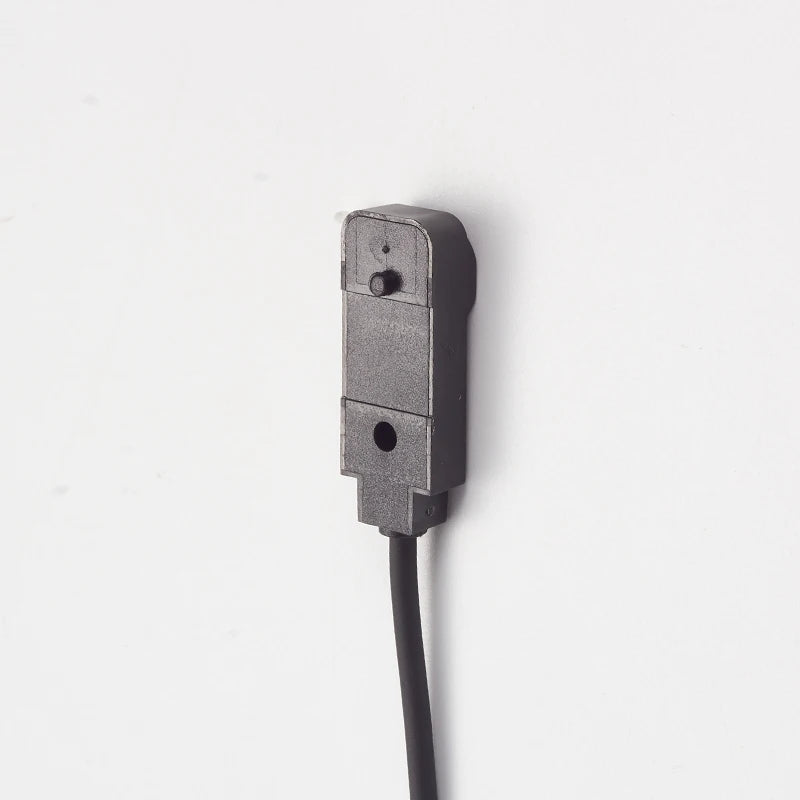

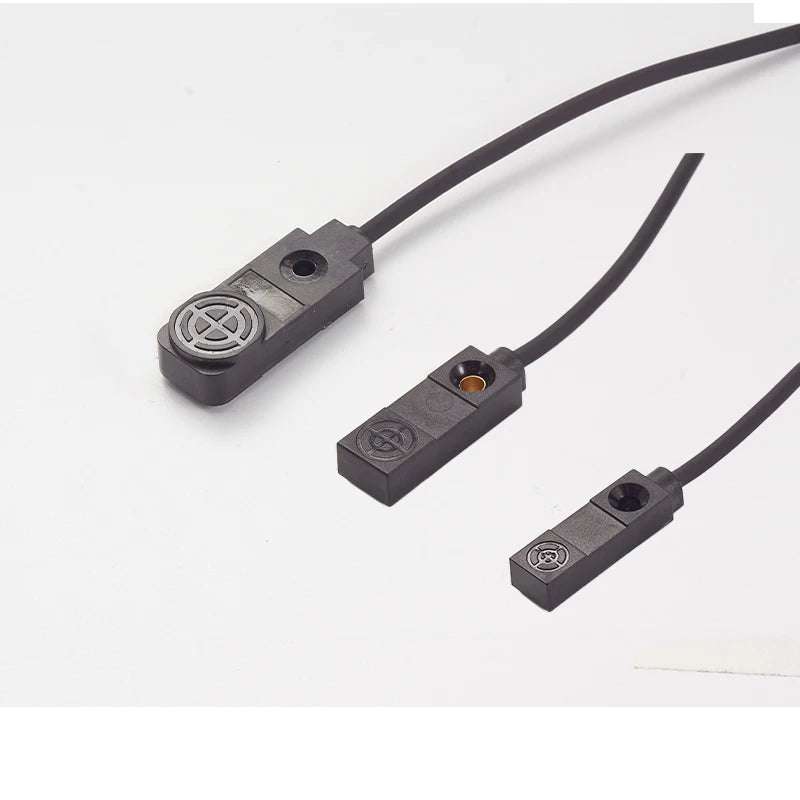

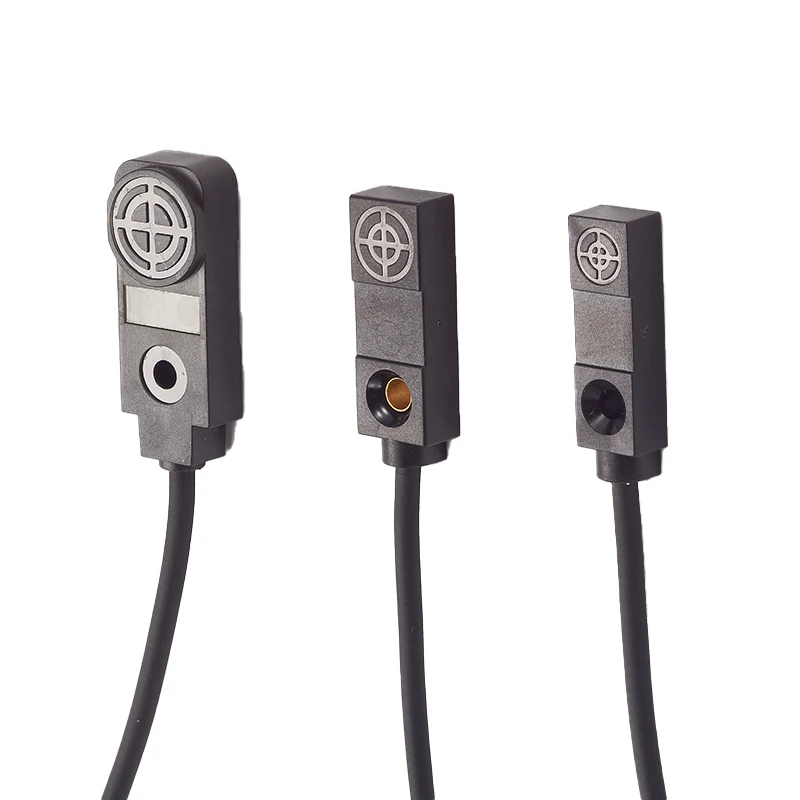

12-24Vdc 3mm Shielded Induction Metal Detection Proximity Switch Square Sensor
EB-W2N (npn)
$19.95
Цена со скидкой
$19.95
Обычная цена
$19.95
Перейти к информации о продукте
12-24Vdc 3mm Shielded Induction Metal Detection Proximity Switch Square Sensor
$19.95
Цена со скидкой
$19.95
Обычная цена
$19.95
Product Description
Specification
|

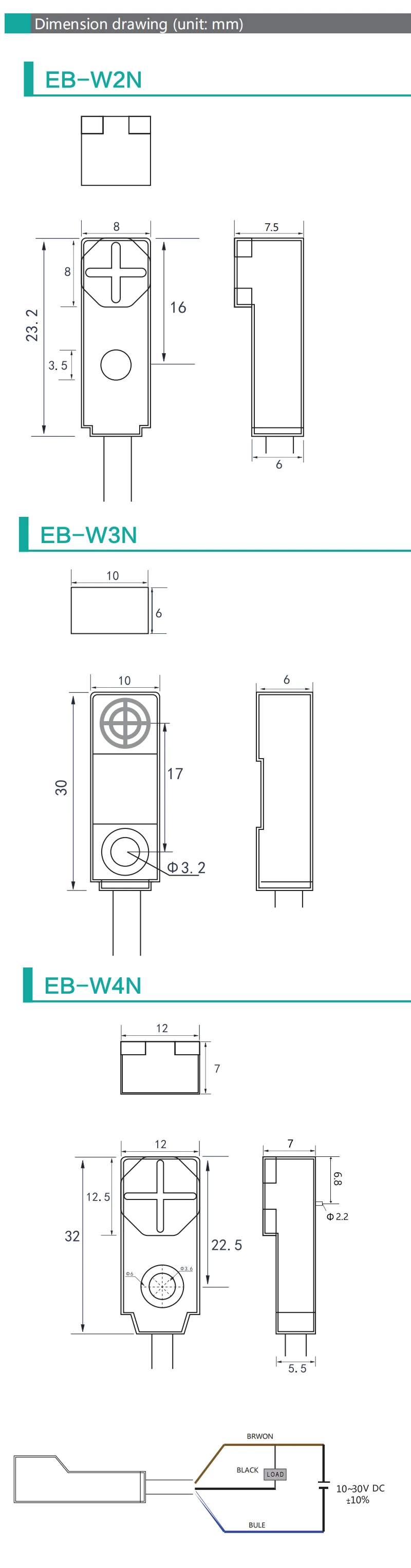

Model
|
EB-W2N | EB-W3N | EB-W4N |
|
Detection distance
|
2MM | 3MM | 4MM |
|
Accept an assignment
|
Less than 10% of the detection distance
|
||
|
Detectable object
|
magnetic metal
|
||
|
Standard inspection object
|
Iron 8×8×1mm
|
||
|
Response frequency
|
500HZ | ||
|
Power supply voltage
(Use voltage range)
|
10-30V DC | ||
|
Consumption current
|
Less than 15mA (at DC24V and no load)
|
||
|
Switching
capacity
|
NPN open collectorBelow 100mA (below DC30V)
|
||
|
Residual
voltage
|
1V or less (when the load current
is 100mA and the conductor length is 2m)
|
||
|
Indicator light
|
Test display (red)
|
||
|
Protection loop
|
Reverse connection protection, surge absorption
|
||
|
Ambient temperature range
|
At work,Storage time: -10~+60℃ (no ice and dew)
|
||
|
Ambient humidity range
|
Working time and storage time: 35 ~ 95% RH each (no condensation)
|
||
|
Effect of temperature
|
At +23℃ in the temperature range of -10~+60℃, the detection distance is less than+10%.
|
||
|
Influence of voltage
|
Within 10% of the rated power supply voltage, the detection distance is less than 2.5% of the rated power supply voltage.
|
||
|
Insulance
|
50mΩ(DC500V megohmmeter) Between the whole charging part and the shell
|
||
|
Voltage withstand
|
AC1,000V1min between the whole charging part and the shell
|
||
|
Vibration (durability)
|
Z 2h in all directions10 ~ 55 Hz up and down amplitude of 1.5mmX, y
|
||
|
Impact (durability)
|
1,000m/s2×, YZ all directions10 times
|
||
|
Protective structure
|
IEC standard IP67, company internal standard oil resistance
|
||
|
Outlet mode
|
Direct outlet 2 meters
|
||
|
Quality (after packaging)
|
60g | ||
|
Texture of
wood
|
Heat-resistant ABS
|
||
