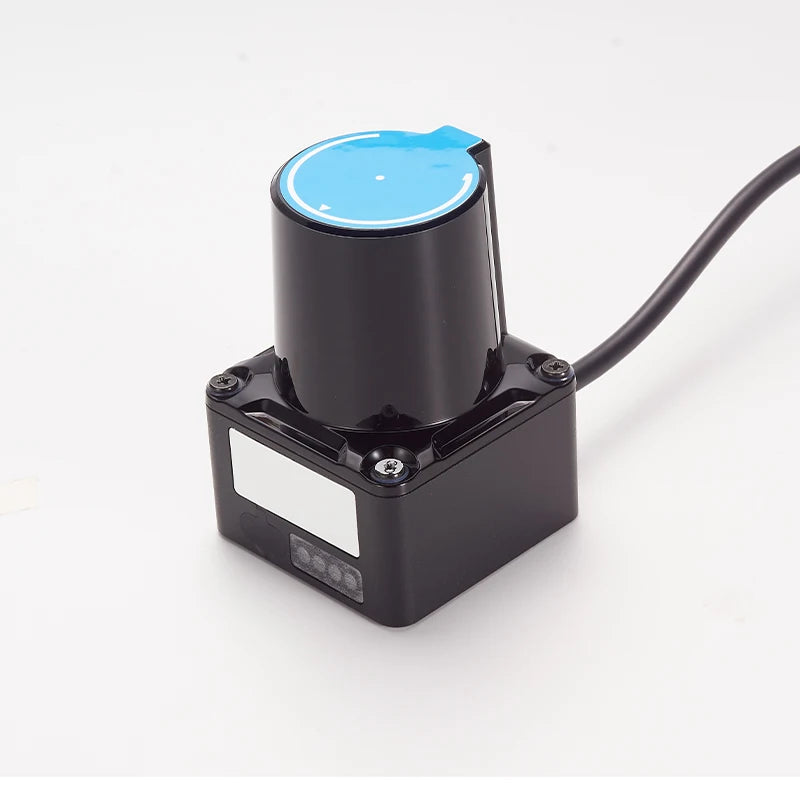

Tof 270 ° LiDAR Safety Obstacle Avoidance Laser Scanner NPN PNP
stainless steel / MT-LR10N
$299.19
Цена со скидкой
$299.19
Обычная цена
$299.19
Перейти к информации о продукте
Tof 270 ° LiDAR Safety Obstacle Avoidance Laser Scanner NPN PNP
$299.19
Цена со скидкой
$299.19
Обычная цена
$299.19
Product Description
Specification
|
Category
|
Laser obstacle avoidance radar
|
|
|
Model
|
NPN
|
PNP
|
|
Examination Area
|
270°
|
|
|
Scanning frequency
|
25Hz
|
|
|
Ranging accuracy
|
±2cm
|
|
|
Start time
|
<10s
|
|
|
Detect output delay
|
0~2sCan be set within the range
|
|
|
Detection size
|
0~5°Can be set within the range
|
|
|
Working temperature
|
-10℃~50℃
|
|
|
Ambient humidity
|
Below 80%, no condensation
|
|
|
The protection grades
|
IP67 | |
|
Data sampling rate
|
18KHz/54KHz
|
|
|
Angular resolution
|
0.5°
|
|
|
Response time
|
40ms
|
|
|
Communication connection
|
USB-TYPE C
|
|
|
Detection hold delay
|
0~2sCan be set within the range
|
|
|
Switch input
|
6PCS(NPN)
|
|
|
Storage temperature
|
-20℃~70℃
|
|
|
Anti-ambient light
|
80000Lux
|
|
|
Power supply
|
DC 9V~28V
|
|
|

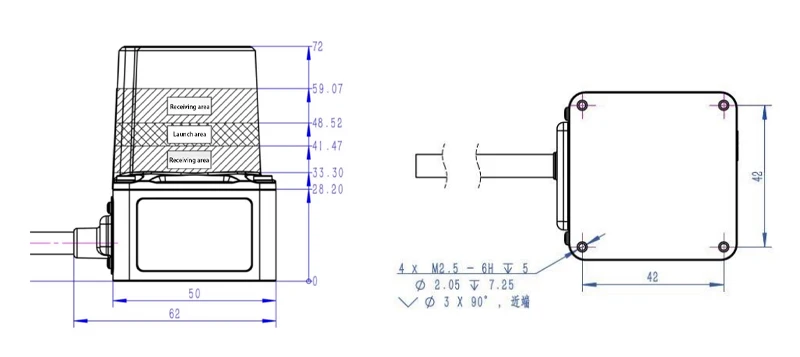

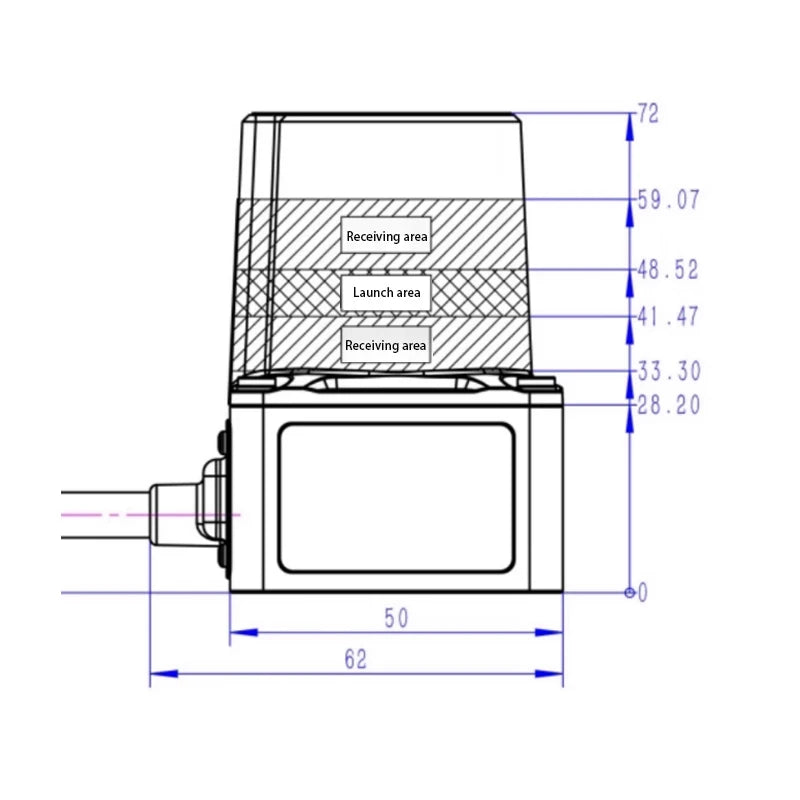

Equipment size
|
50mm(L)*50mm(W)*72mm(H)
|
|
|
Equipment power consumption
|
Rated power:< 1W (no load)< 3W (no load)Starting power:
|
|
|
Switch output
|
4(3 zone signals, 1 fault signal)
|
|
|
Indicator light
|
4 (3 regional signals, 1 fault signal)
|
|
|
Number of channels
|
64 (each channel contains 3 detection areas)
|
|
Product wiring
| No. | Signal Type | Function | Color |
|---|---|---|---|
| 1 | Power | DC 9 V-28 V | Red |
| 2 | Power | DC GND | Black |
| 3 | Input | IN COM: Input Common Terminal | Brown |
| 4 | IN 1 | Input Port 1 | Red White |
| 5 | IN 2 | Input Port 2 | Orange White |
| 6 | IN 3 | Input Port 3 | Black White |
| 7 | IN 4 | Input Port 4 | Gray |
| 8 | IN 5 | Input Port 5 | Brown White |
| 9 | IN 6 | Input Port 6 | Orange |
| 10 | Output | OUT COM: Output Common Terminal | White |

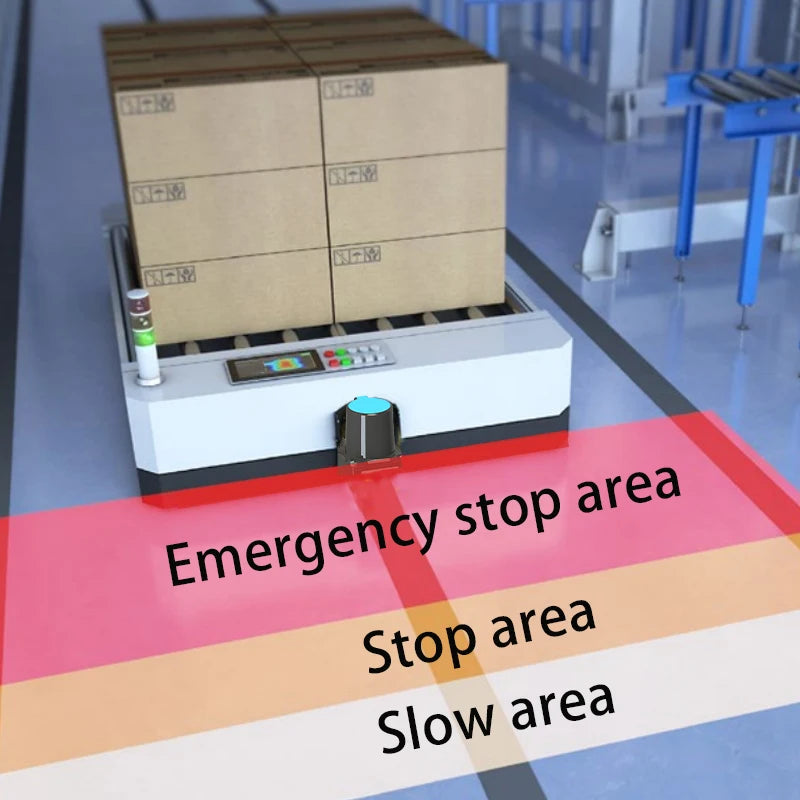

| 11 | OUT1 | Port activates when an object is detected in the Caution Zone | Yellow |
| 12 | OUT2 | Port activates when an object is detected in the Warning Zone | Green |
| 13 | OUT3 | Port activates when an object is detected in the Alarm Zone | Blue |
| 14 | Error OUT | Port activates when a sensor error occurs | Purple |
