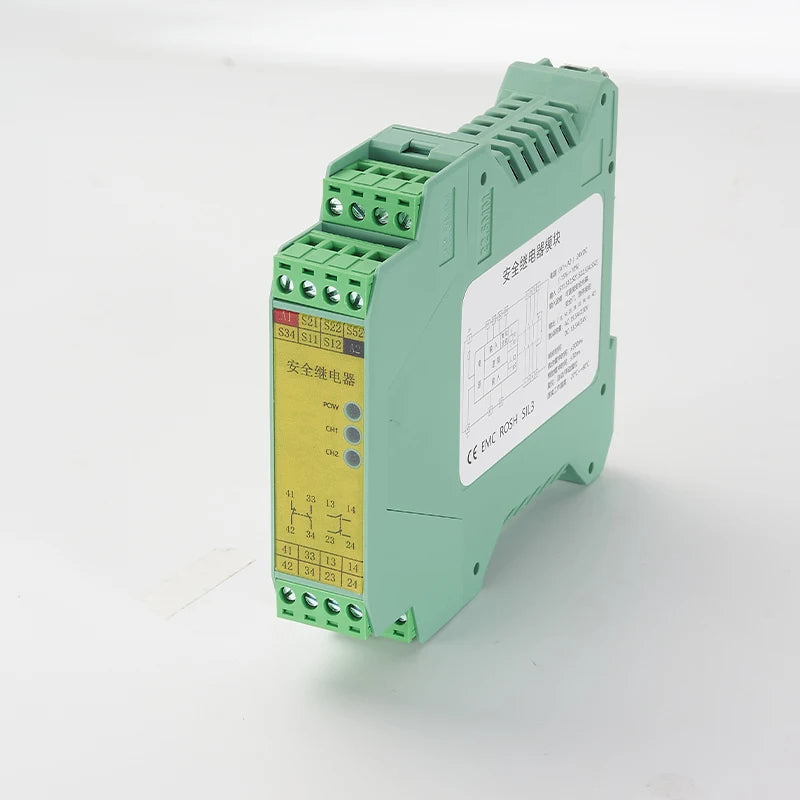

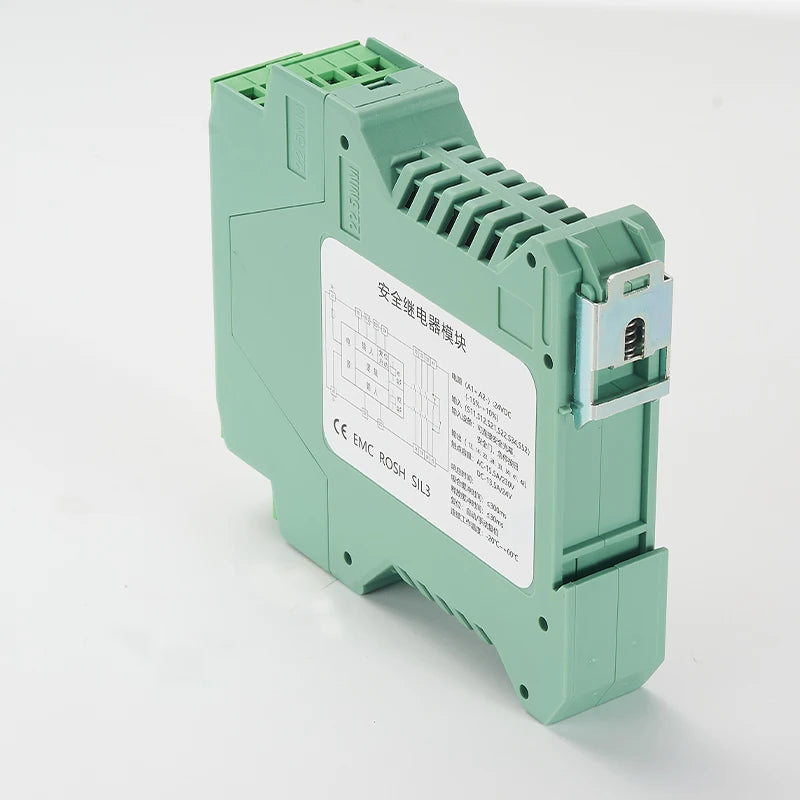

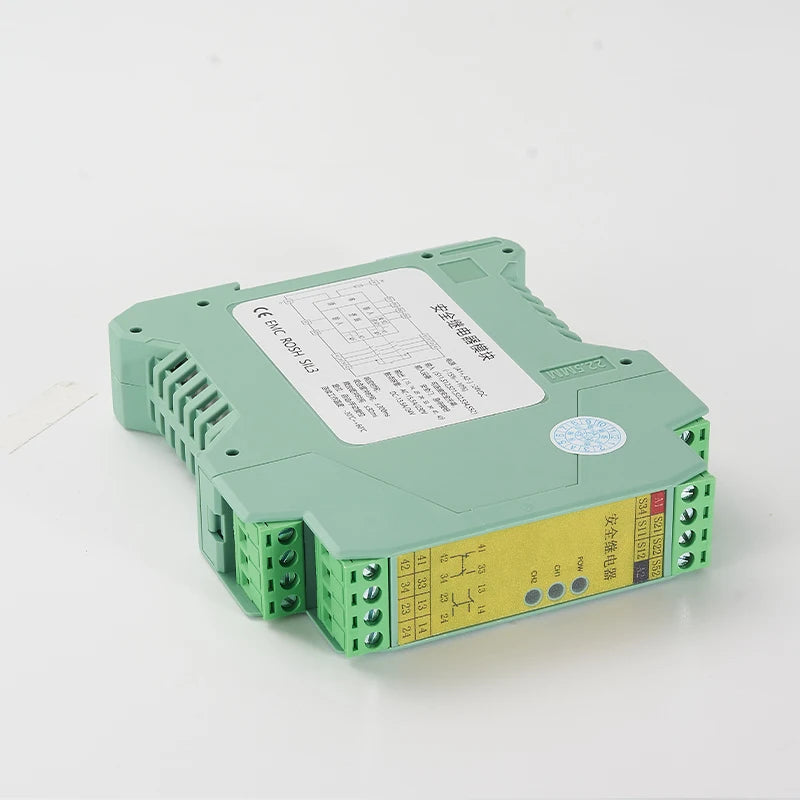

The safety relay module is universal and compliant with SIL3.

$149.59

$149.59 $149.59

Product Description

Specification

Compliance Standard		EN ISO 13849-1
		EN ISO 13849-2
		EN 62061
		IEC 61508
		IEC 62061
Performance Level (PL)		e (EN ISO 13849-1)
Safety Integrity Level (SIL)		3 (IEC 61508, IEC 62061)
Applicable Safety Category		4 (EN ISO 13849-1)
Rated Supply Voltage		24V AC/DC –15% +10%
Module Power Consumption		≤3W (at 24VDC)
Overcurrent Protection		Built-in, electronic
Minimum Applicable Load (Reference Value)		5V DC / 10mA (initial value)
Release Buffer Time		Emergency stop switch ≤30ms
Rated Insulation Voltage		250V AC
Rated Impulse Withstand Voltage		6kV (1.2/50µs) (input-output)
Vibration Resistance (6kV)		10~55Hz, single amplitude 0.35mm
Overvoltage Category		III
Pollution Degree		2
Protection Class		IP20
Safety Output Contacts	Number of Contacts	3NO + 1NC
	Contact Type	Forced-guided
	Contact Fuse Protection	10A gL/gG (NO contacts)
		6A gG (NC contacts)
Mechanical Durability		10 million cycles or more
Output Contact Ratings	AC-15	5A/230V AC
	DC-13	5A/24V DC
Operating Ambient Temperature		-20 to +60°C (no icing)
Storage Ambient Temperature		-40 to +85°C (no icing)
Operating Ambient Humidity		10~90%RH (no condensation)
Storage Ambient Humidity		10~90%RH (no condensation)

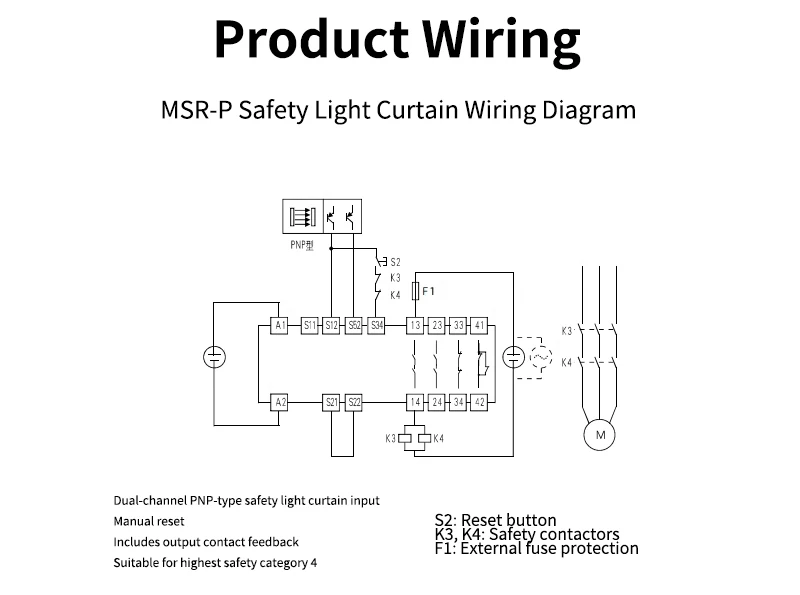

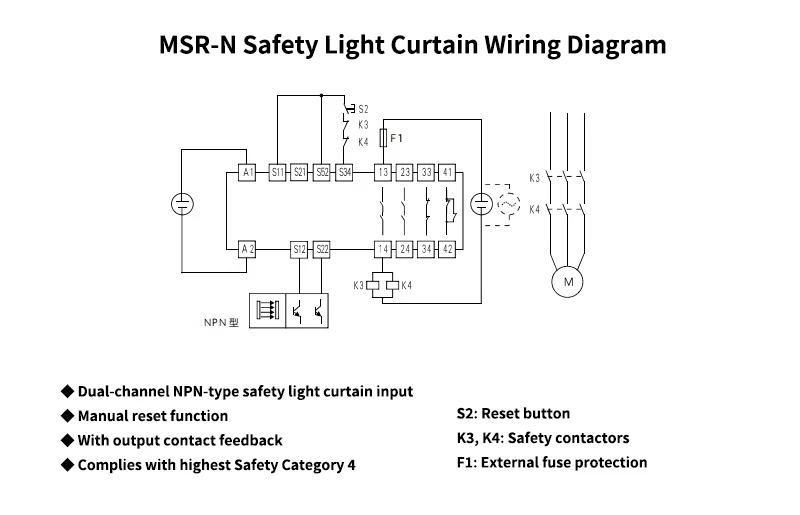

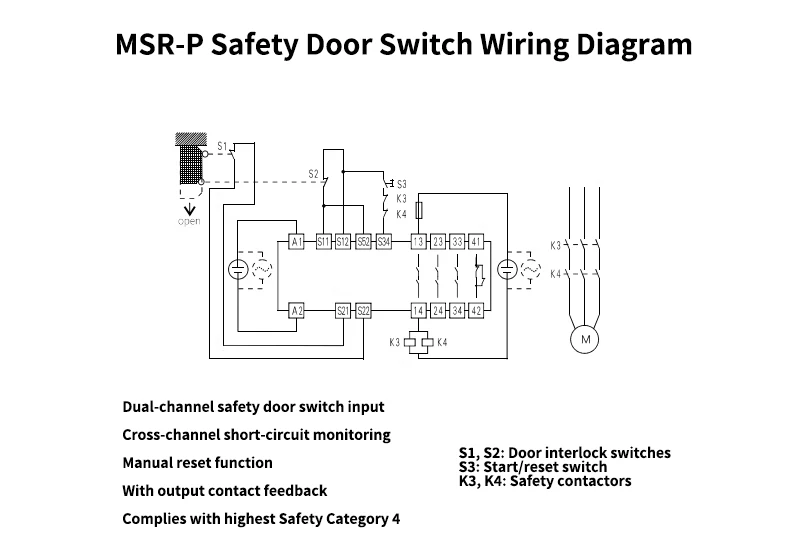

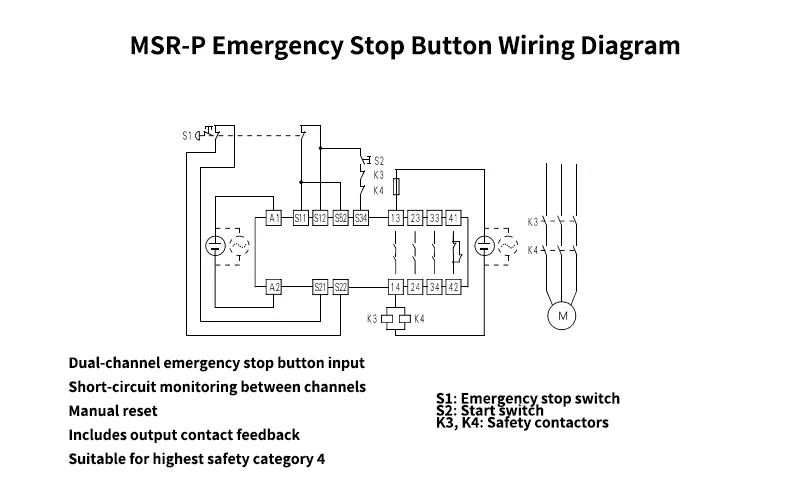

Product wiring

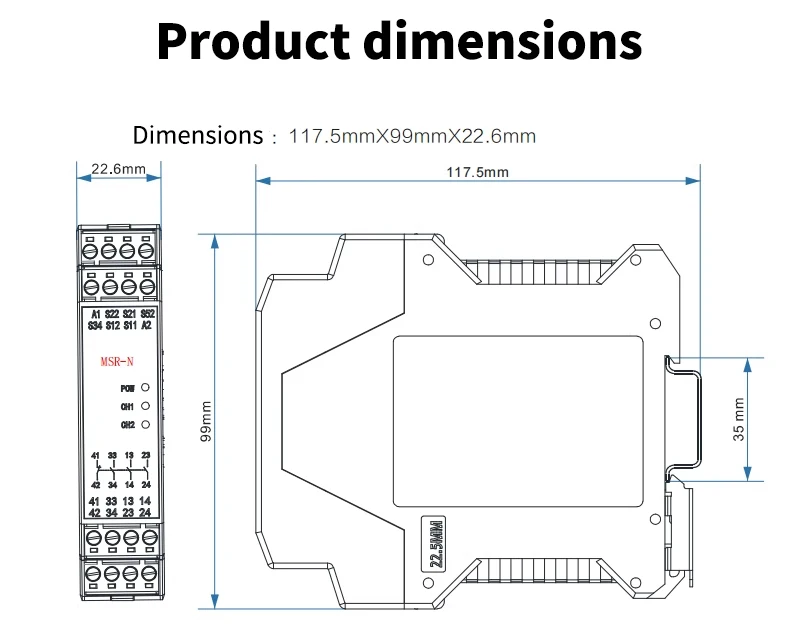

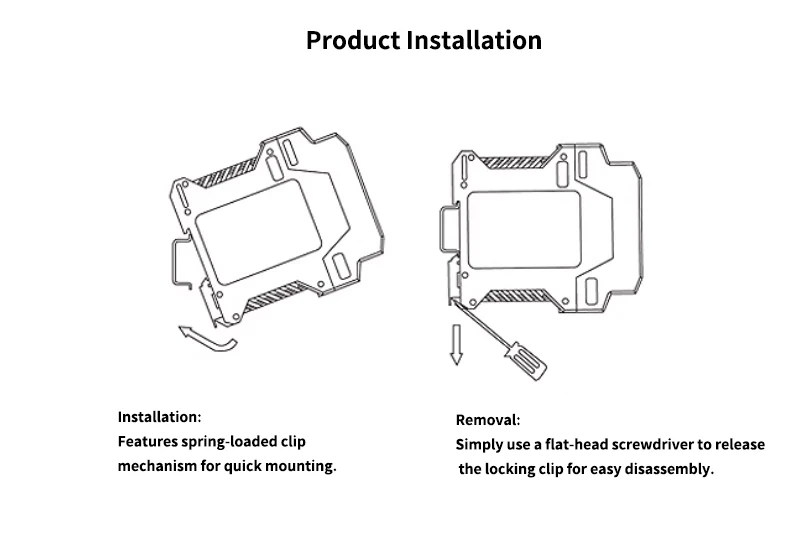

Panel Display	Description	Remarks
A1	Power +24V DC Input	Power 24V AC Input
A2	Power 0V DC Input
S11
S12	Safety Input 1
S52
S21	Safety Input 2
S22
S34	Reset Start Input
13-14
23-24	3 Normally Open (NO) Safety Output Contacts	Ratings
33-34		AC-15, 5A/230V
41-42	1 Normally Closed (NC) Safety Output Contact	DC-13, 5A/24V
POW	Green LED, lights up when power is on
Ch1	Green LED, lights up when safety relay K1 is closed
Ch2	Green LED, lights up when safety relay K2 is closed
