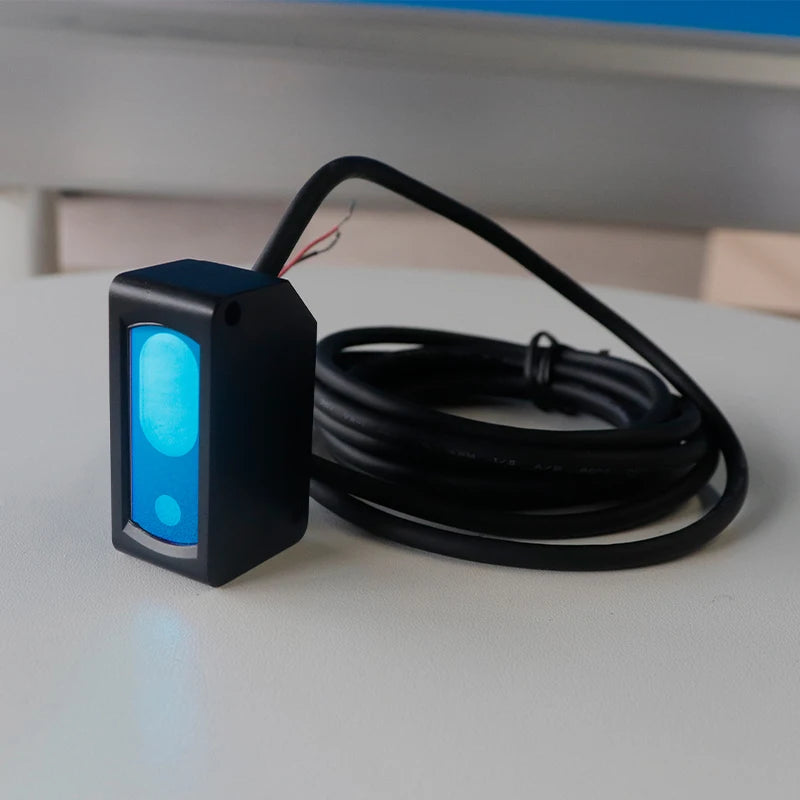

OEM 0.01 mm high precision Cmos laser sensor ranging displacement sensor RS485 communication analog

Product Description

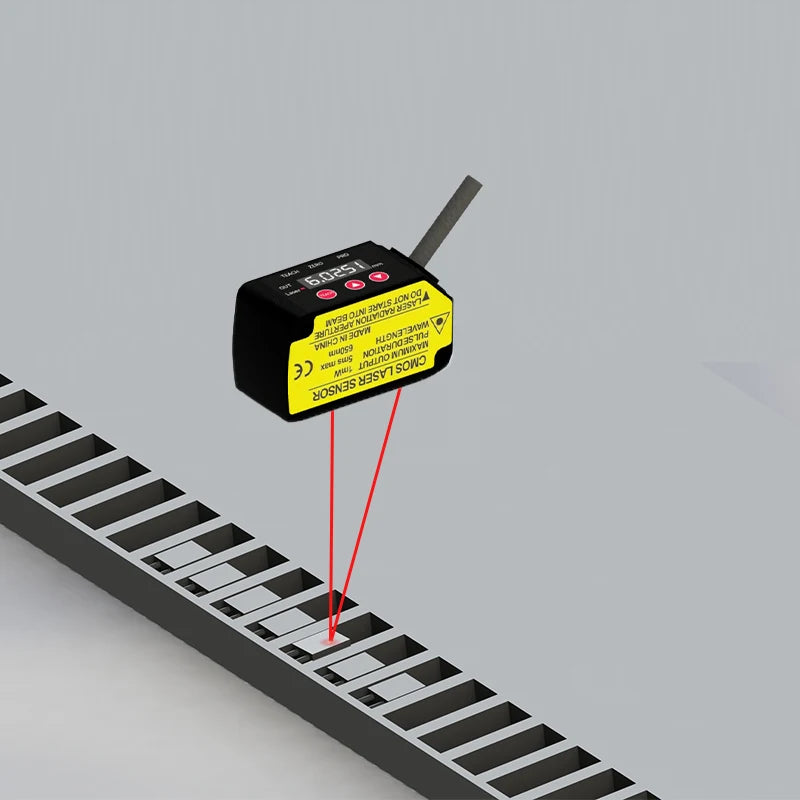

high-precision laser ranging displacement sensor

Features:

Supports NPN/PNP switching output
Supports RS485 communication

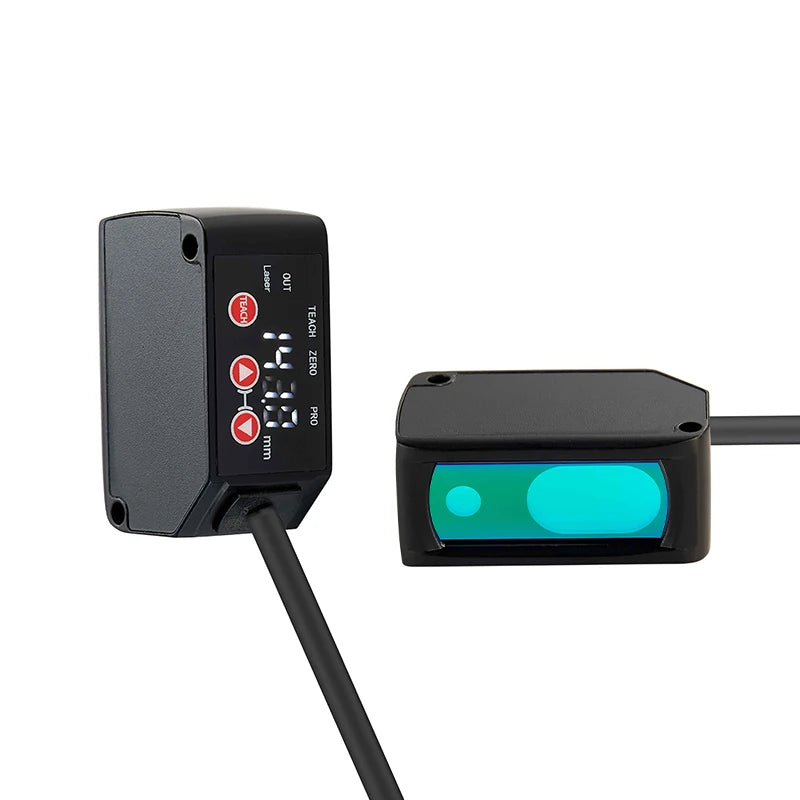

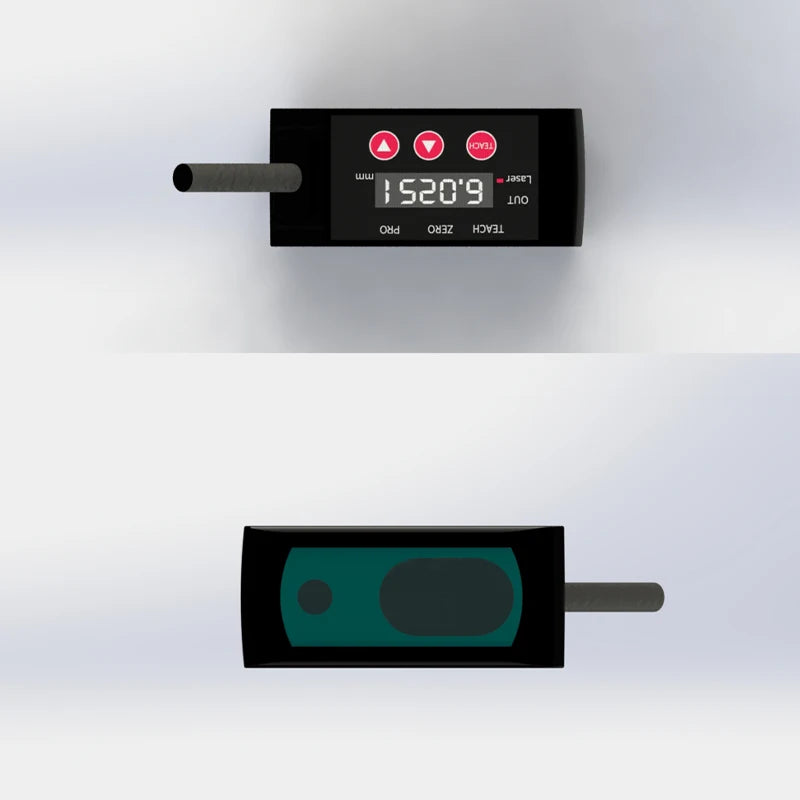

4-digit white digital display, clear and bright
Full metal housing, sturdy and durable with better protection
Compact size, small light spot, high precision
The analog quantity supports 0-5v 0-10v 4-20mA

Center distance	30mm/50mm/100mm/200mm/400mm
Measuring range	±5\±15mm\±35mm\±80\±200mm
Full scale(F.S.)	25-35mm\35-65mm\65-135mm\120-280mm\200-600mm
Supply voltage	12...24VDC
Consumption power	≤960mW
Load current	≤100mA
Voltage drop	<2V

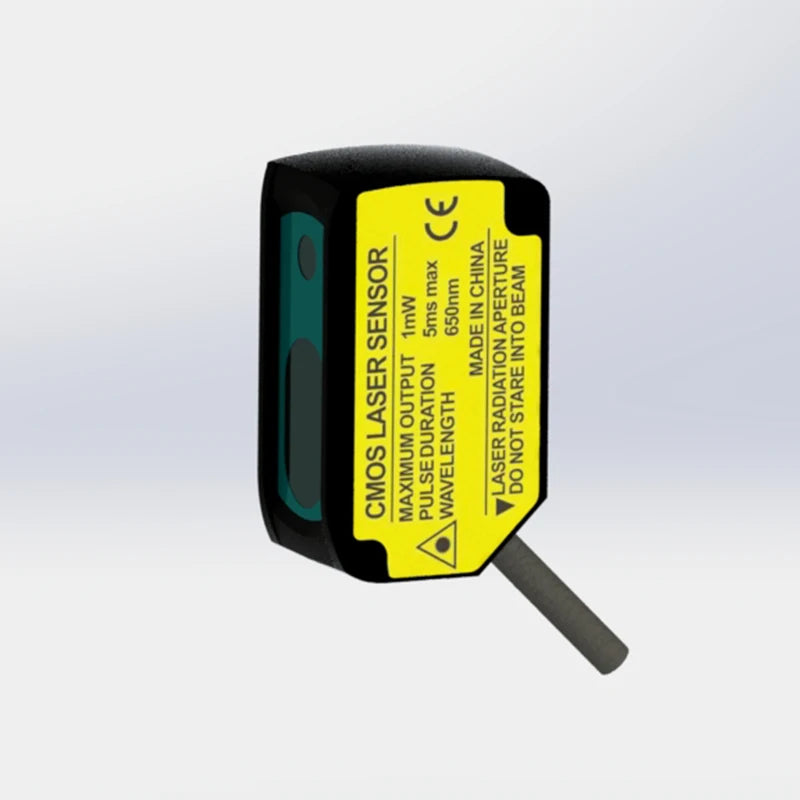

Light source	Red laser(650nm);Laser level:Class 2
Beam diameter	About Φ70μm(at 30mm) About Φ100μm(at 50mm) About Φ120μm(at 100mm) About Φ130μm(at 200mm) About Φ220μm(at 500mm)
Resolution	10μm
Linear accuracy	±0.1%F.S. ±0.2%F.S.(measuring distance 200mm-400mm);±0.3%F.S.(measuring distance 400mm-600mm)
Repeat accuracy	10um\30μm\70μm\200um 300μm@200mm-400mm;800μm@400mm(Include)-600mm
Output 2(Model selection)	Analog:4...20mA(Load resistance<300Ω)/0-5V/0-10Vsettable;Switch value:NPN/PNP and NO/NC settable
Distance setting	RS-485:Keypress/RS-485 setting;Analog:Keypress setting
Response time	<5ms

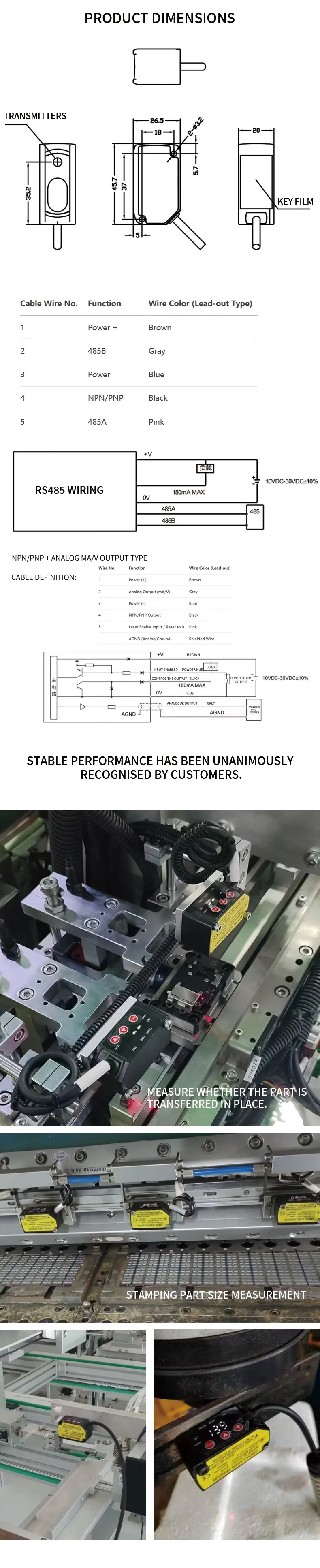

Dimension	45mm26mm20mm
Display	LED digital tube
Temperature drift	<0.03%F.S./℃
Indicator	Output Status LED: OUT (Red) Zero Reset LED: ZERO (Red)
Protection circuit	Short circuit protection,reverse polarity protection, overload protection
Service environment	Operation temperature:-10…+45℃;Storage temperature:-20…+60℃;Ambient temperature:35...85%RH(No condensation)
Anti ambient light	Incandescent light:<3,000lux;Sunlight interference:≤10,000lux
Protection degre	IP65
Material	Housing:Zinc alloy;Lens:PMMA;Diaplay:Glass
Vibration resist	10...55Hz Double amplitude1mm,2H each in X,Y,Z directions
Impulse resista	500m/s²(About 50G)3 times each in X,Y,Z directions
Connection	2m Composite cable(0.2mm²)
