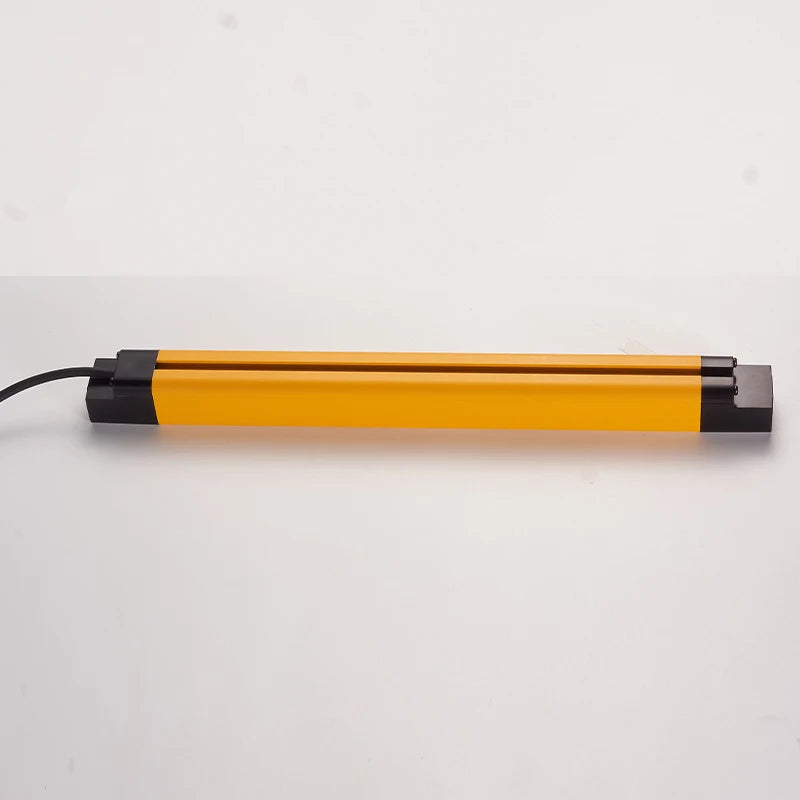

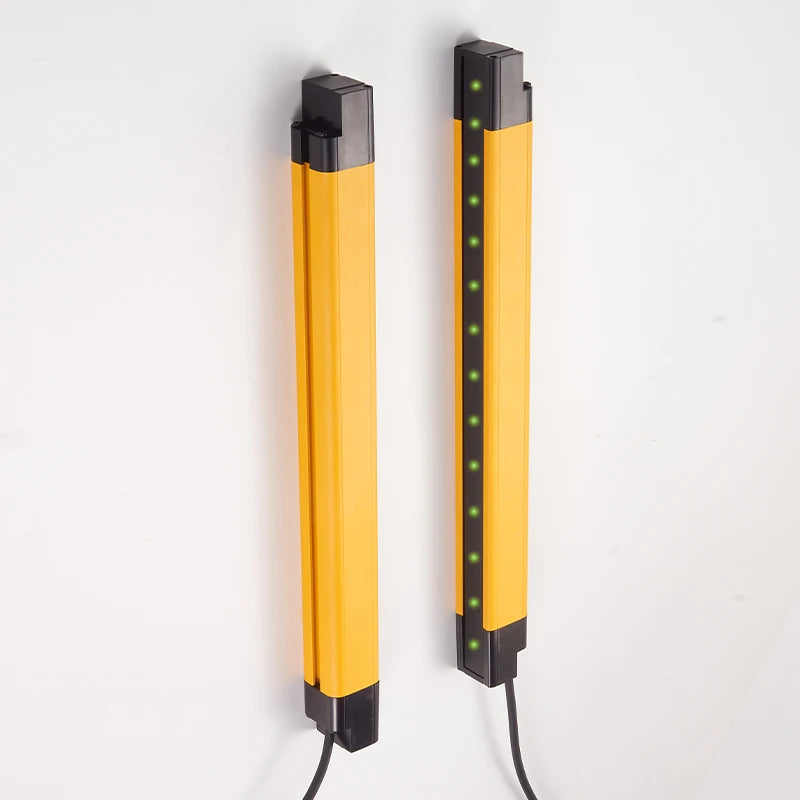

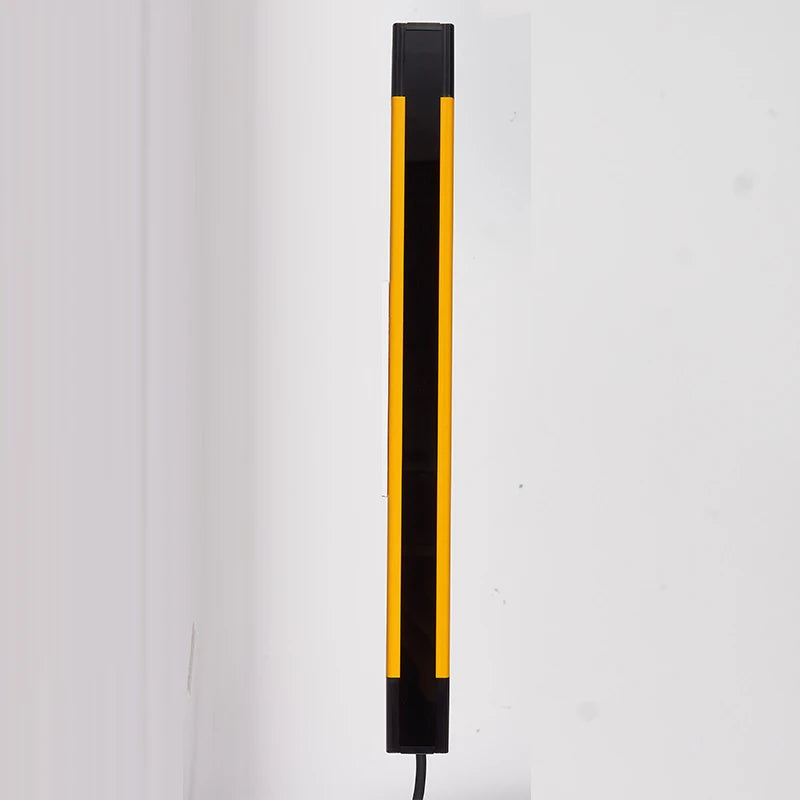

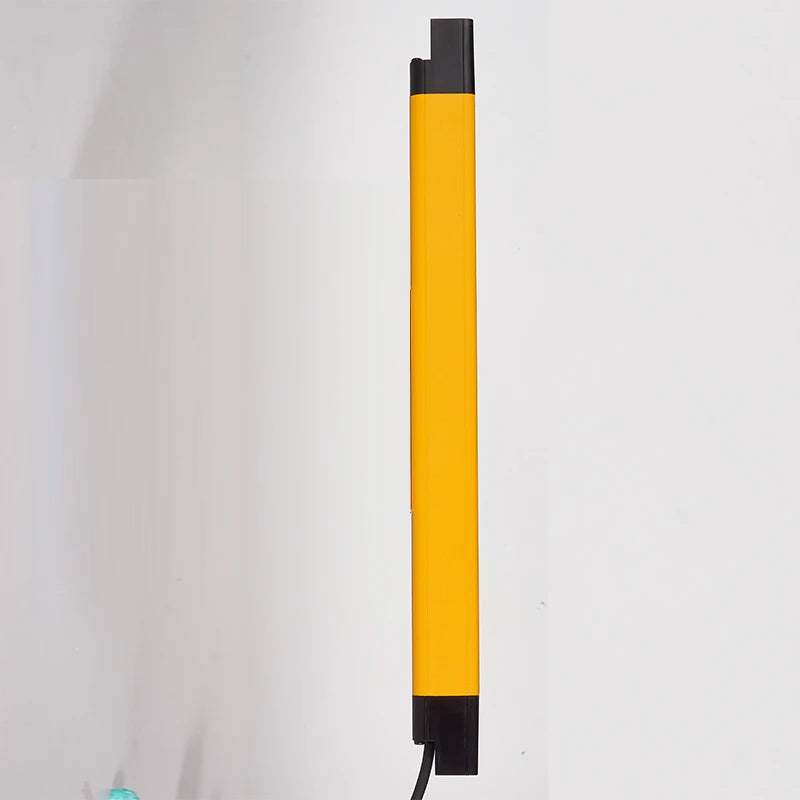

European Standard Type 4 Industrial Automatic Infrared Safety Light Curtain Barrier Industrial Automatic Infrared Safety

Product Description

Here's the professional English translation of the safety light curtain specifications:

Specification	Value

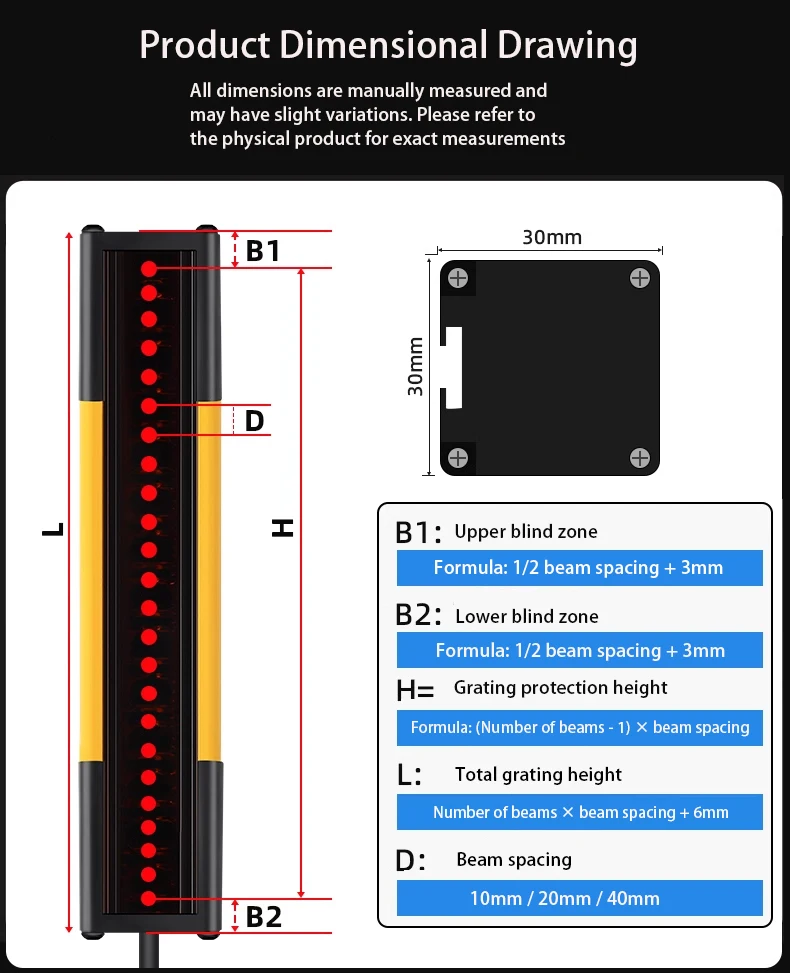

Cross-sectional Area	30×30mm
Protection Height	100~6000mm

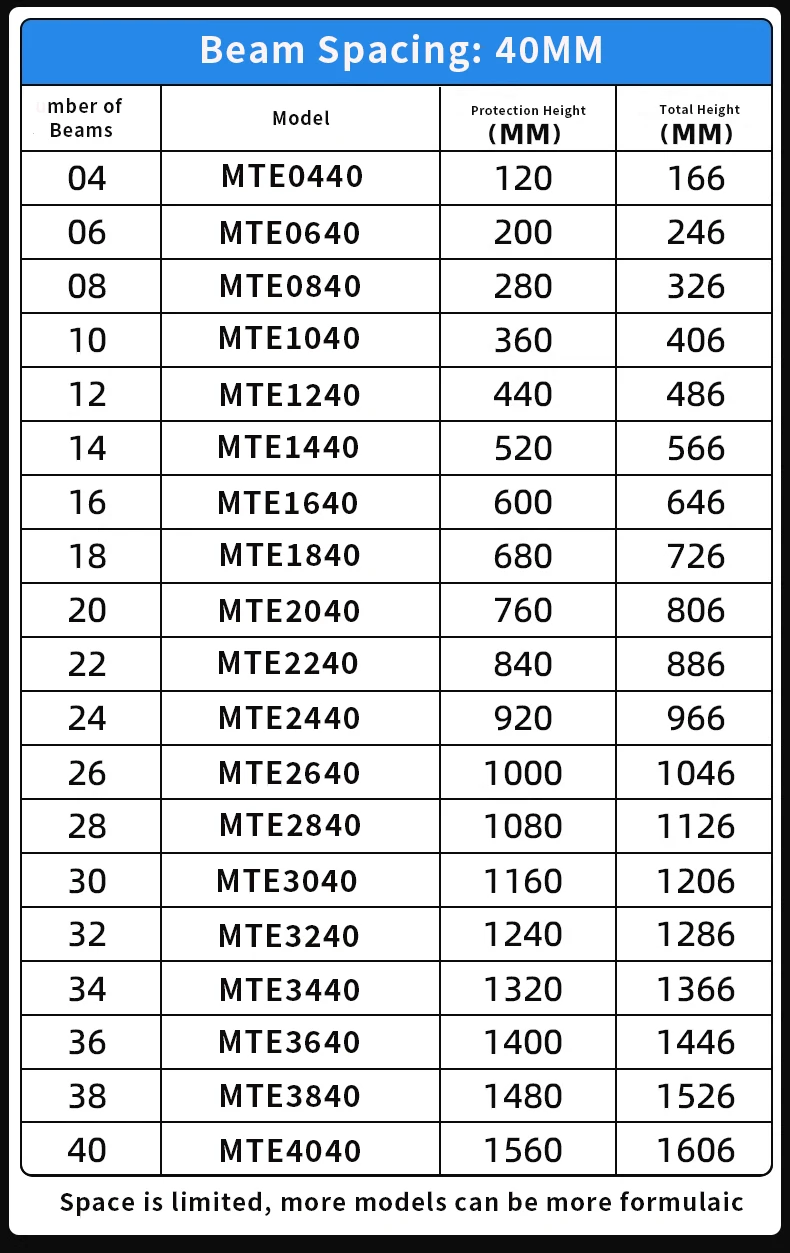

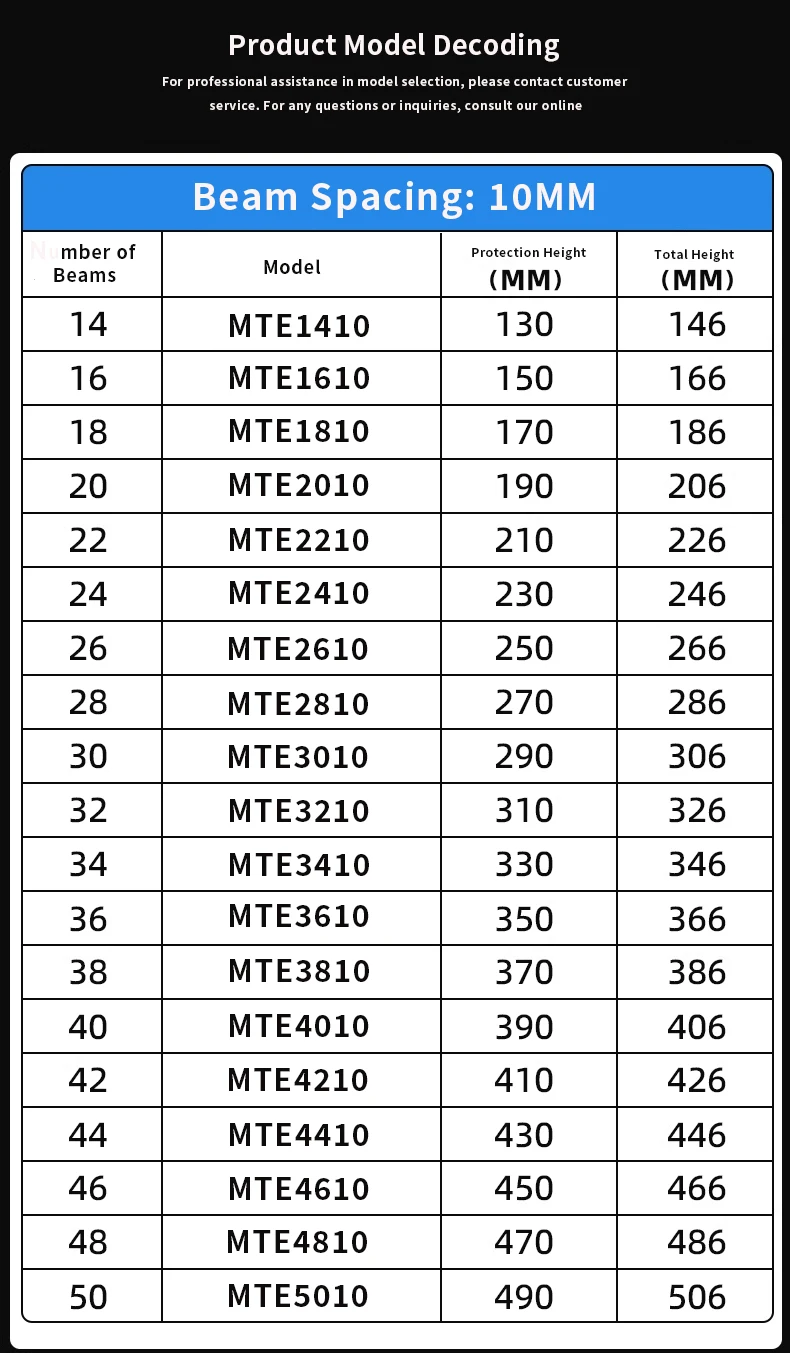

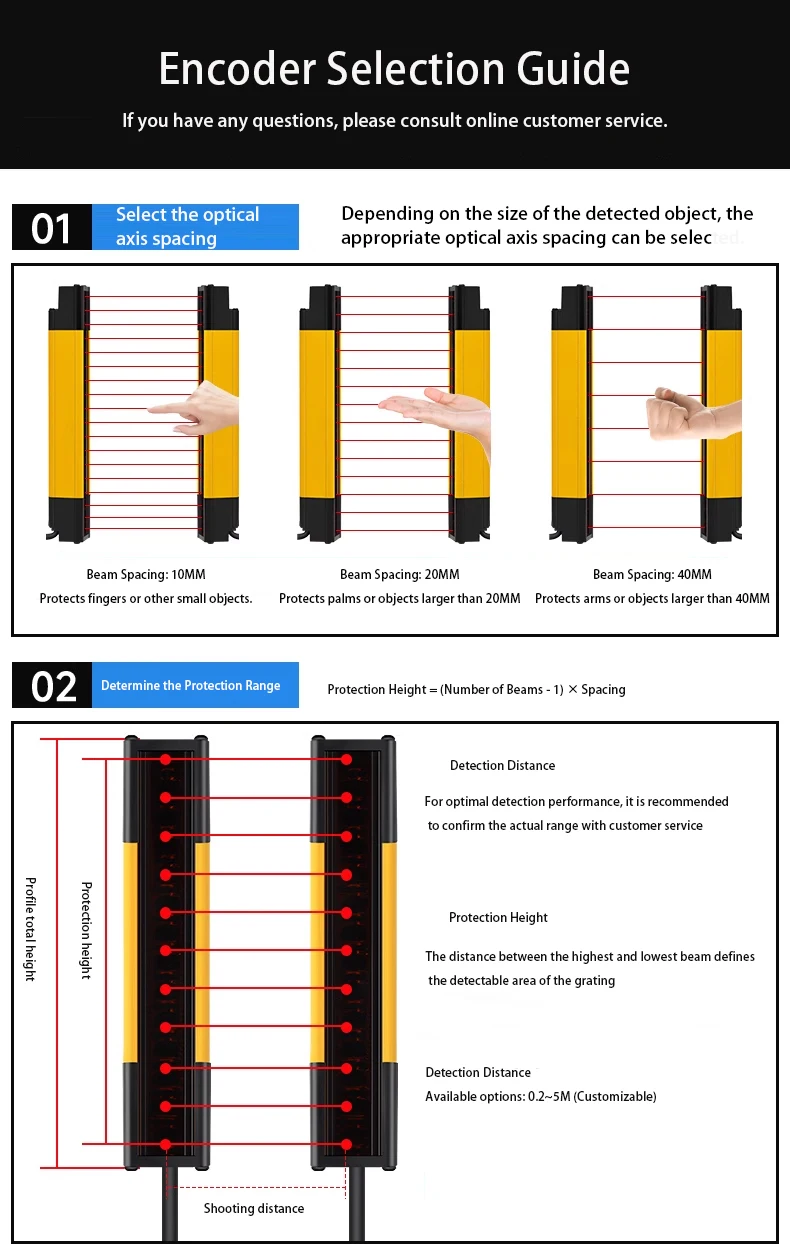

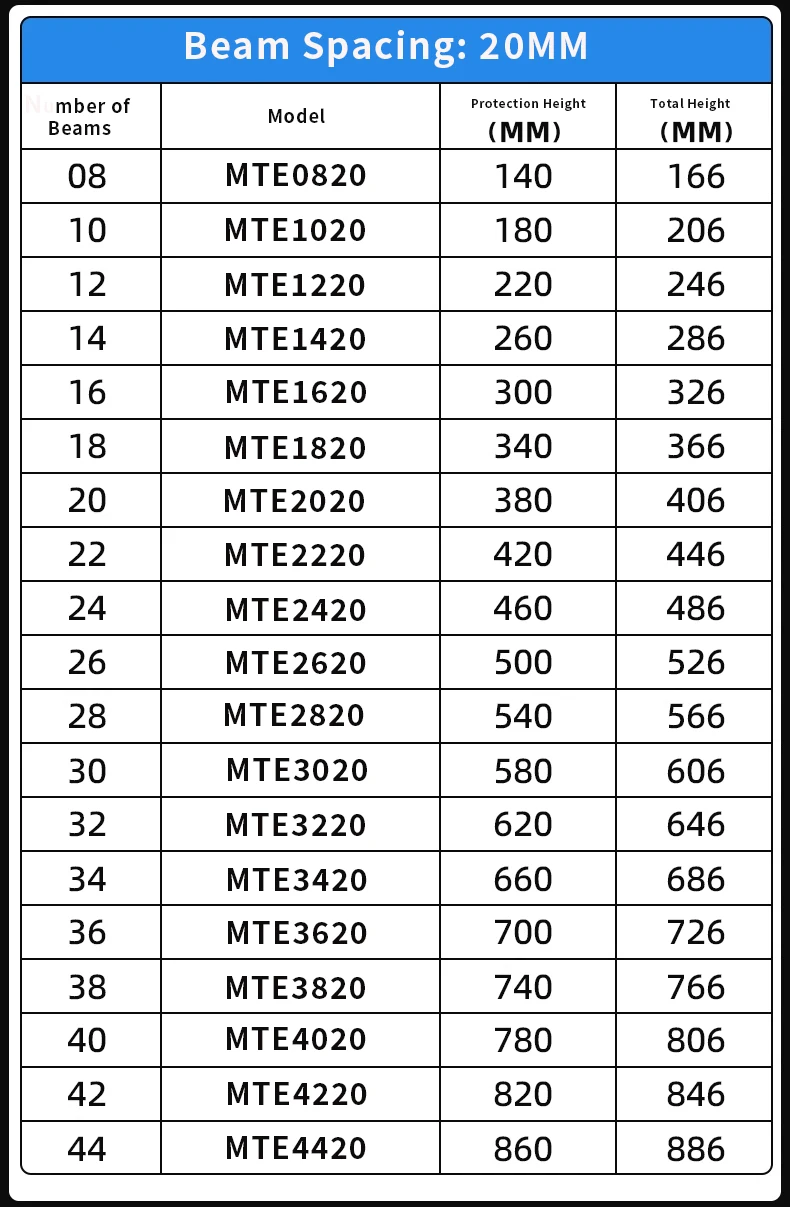

Beam Pitch	10/20/40mm
Minimum Detectable Object	Ø15mm opaque object or larger
Power Consumption	4~8W

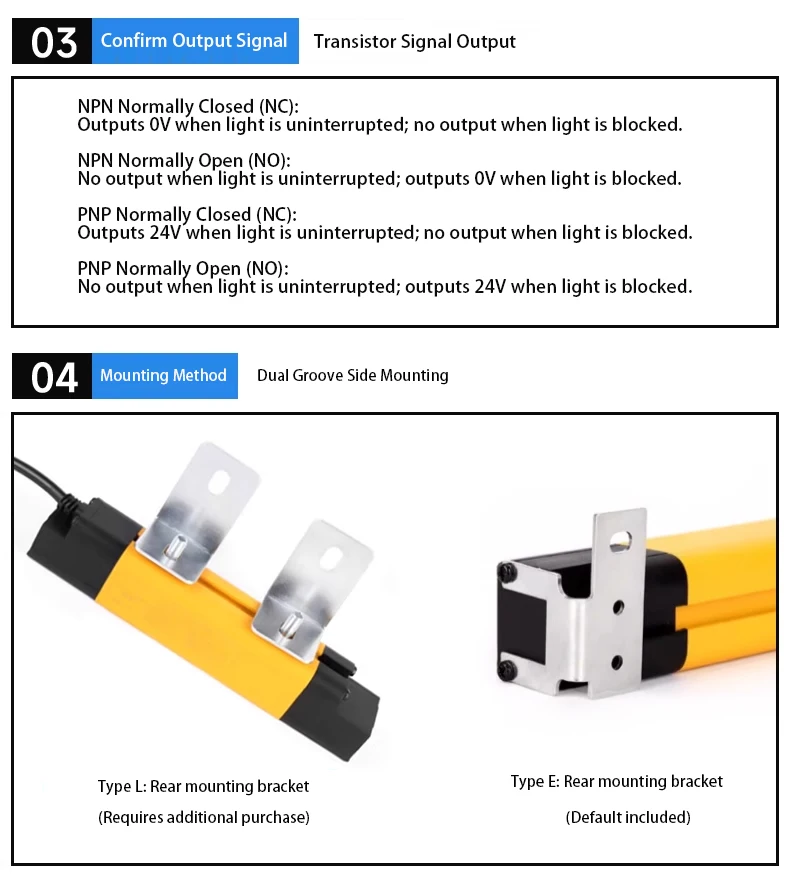

Output Mode	NPN/PNP
Number of Beams	4~150 beams
Power Supply Voltage	24V DC ±10%
Current Consumption	<200mA
Response Time	≤15ms
Detection Range	0.3~3m
Light Source	Infrared LED (modulated)
Protection Circuits	Reverse polarity, overload, short circuit
Ambient Temperature	-10~+55℃ (avoid condensation/freezing)
Ambient Humidity	35~85%RH
Ambient Illumination	10,000 lux
Insulation Resistance	≥50MΩ (measured with 500V DC megohmmeter)
Vibration Resistance	10~150Hz, double amplitude 1.5mm, 2 hours each for X/Y/Z axes
Shock Resistance	500m/s² (approx. 50G), 3 shocks per X/Y/Z direction
Protection Rating	IP65

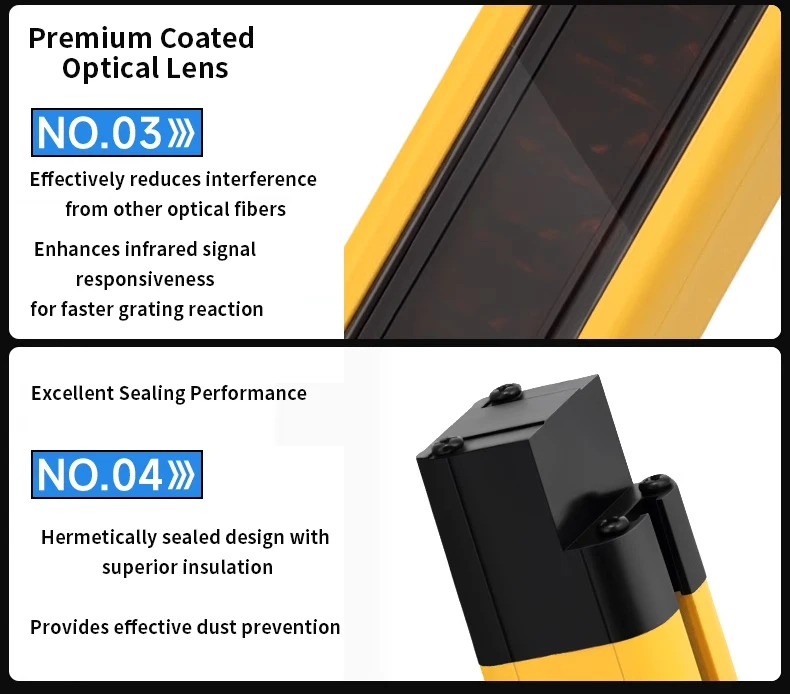

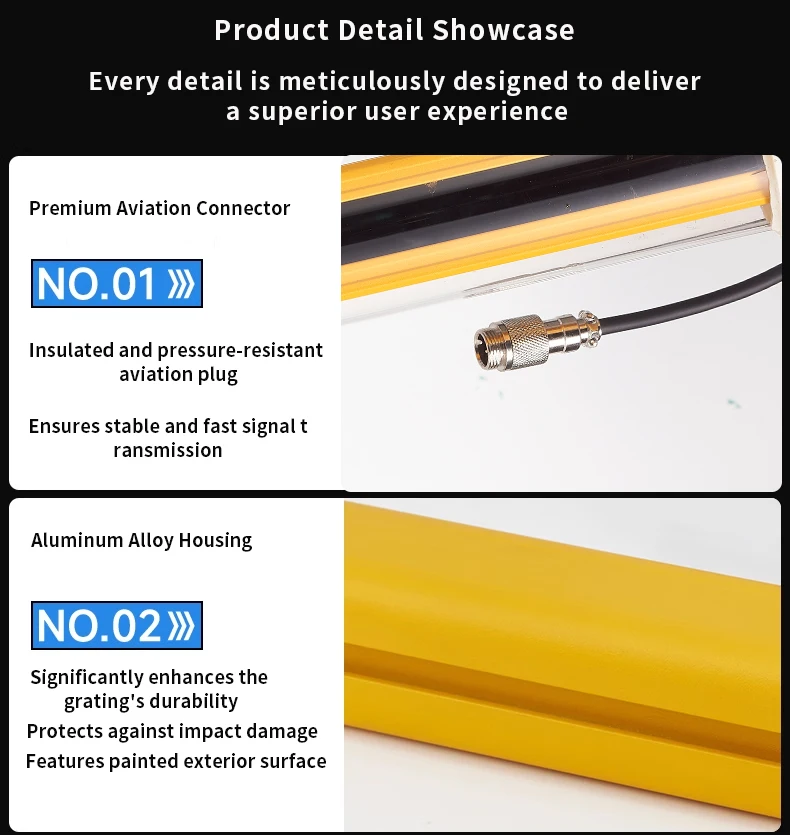

Materials	Housing: Aluminum alloy Light window: Polycarbonate End caps: Reinforced nylon
Connection Method	Cableless M12 connector
Accessories	3m female cable (custom lengths available)
